Change Oil at Front PTO (if Equipped)

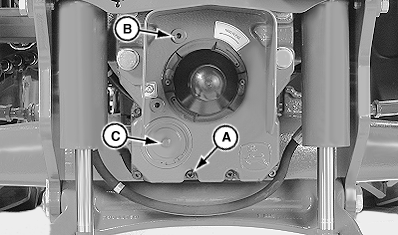

LV15852-UN-12SEP12

A - Drain Plug

B - Filler Plug

C - Cover

1. Remove filler plug (B).
2. Remove drain plug (A).
3. Drain oil into a suitable container.
4. Remove snap-ring and cover (C).
5. Remove and clean oil screen.
6. Check O-ring, install oil screen, close cover, and install snap-ring.
7. Install drain plug (A), torque to 42 Nm (31 lb-ft).
8. Add transmission/hydraulic oil to PTO housing. (See Front PTO Oil in Fuel, Lubricants and Coolants section.)
9. Install filler plug (A), torque to 42 Nm (31 lb-ft).

NOTE: Check fluid level after changing oil and after initial run to ensure that entire system is filled.

Recommended Oil	J20D is the only acceptable transmission/hydraulic oil. Also see “Fuels, Lubricants, and Coolants” section.
Capacity	3.1 L (0.8 gal.)
