Replace Air Compressor Belt (5075M)

  1. LV18493
    LV18493-UN-26JUL13

    LV18487
    LV18487-UN-26JUL13

    Air Compressor Belt Routing

    A - Idler Pulley Adjustment Nut

    B - Idler Pulley

    Loosen idler pulley adjustment nut (A).
  2. Slide idler pulley (B) towards inside of tractor to release belt tension.
  3. Belt can be pulled around fan to remove.
  4. Install new belt in reverse order of removal.
  5. Adjust belt tension. (See Inspect and Adjust Air Compressor Belt (5075M Cab) in Maintenance—Every 300 Hours section.)

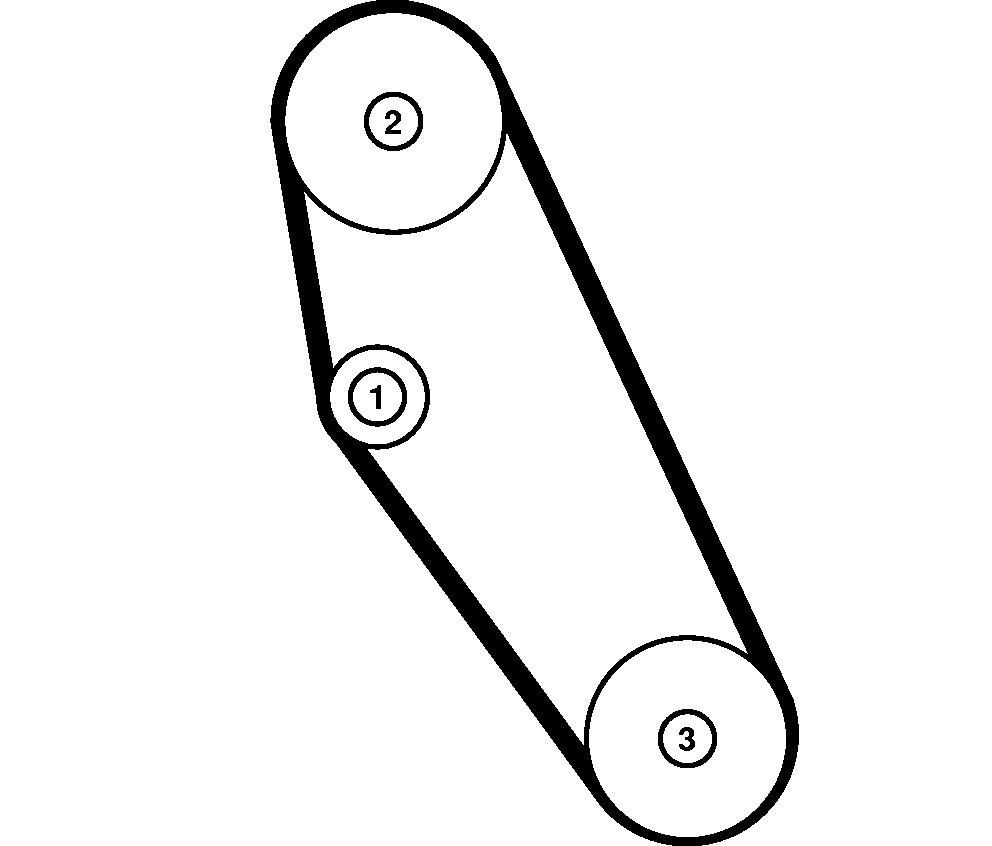

Belt Routing

1

Idler Pulley

2

Air Compressor Pulley

3

Coolant Pump Pulley

JZ81662,00010FE-19-20130726
