Inspect and Adjust AC Compressor Belt (5075M Cab)

Replace if worn or damaged.

NOTE: Run engine for 5 minutes to warm a cold belt. Let a hot belt cool for 15 minutes before adjustment.

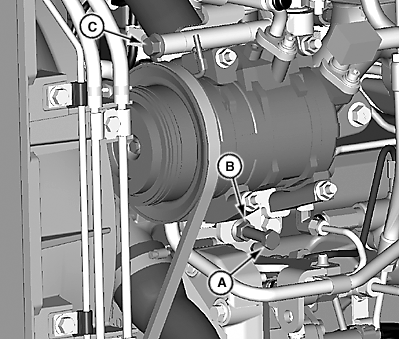

LV18467-UN-25JUL13

A - Tension Adjustment Cap Screw

B - Tension Adjustment Jam Nut

C - A/C Compressor Mounting Cap Screw

Check tension by pressing belt midway between pulleys. Belt deflection must be to specification.

Item	Measurement	Specification
A/C Compressor Belt	Belt Tension—Deflection	19 mm (.75 in.) at 89 N·m (20 ft-lbs)
