Lubricate MFWD Axle Trunnion

LV14409
LV14409-UN-08JUN11

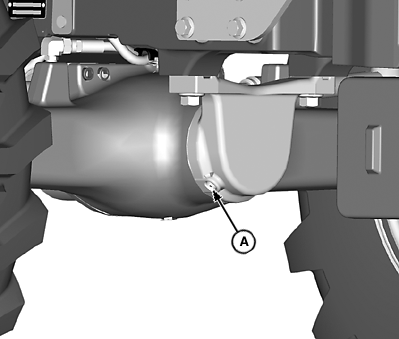

Front Side Trunnion of MFWD Axle

LV14410
LV14410-UN-08JUN11

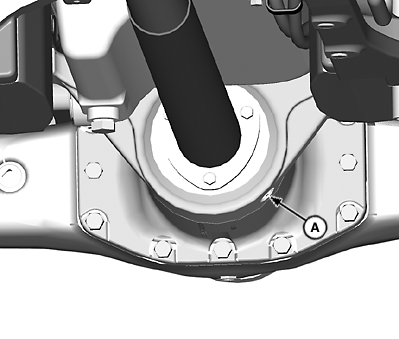

Back Side Trunnion of MFWD Axle

A - Trunnion Grease Points

Apply several shots of multi-purpose grease (see Grease, in Section 100) to trunnion.

NOTE: Daily service is necessary when operating in extremely wet and muddy conditions.

Greasing too frequently can cause seal fatigue.

JZ81662,000110B-19-20130731
