Change MFWD Axle Wheel Hub Oil—If Equipped

1.
   LV15529-UN-05MAR12


   LV14649-UN-18AUG11

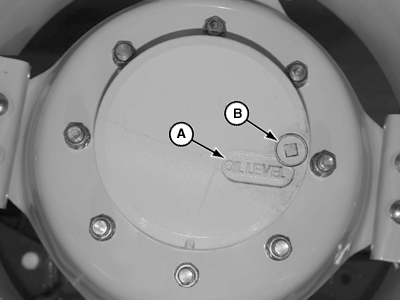

   Drain and Fill Plug

   A - Oil Level

   B - Drain/Fill Plug

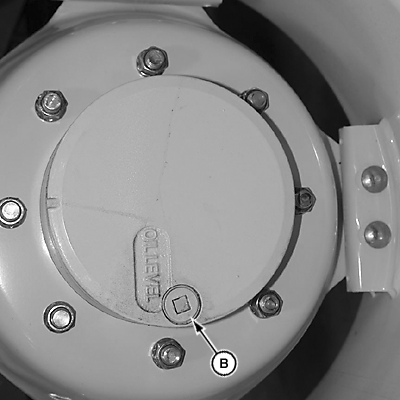

   Park tractor on level surface, with wheel rotated until drain/fill port plug (B) at bottom of hub.

---




2. Remove plug (B) and drain oil.

3. After oil has drained, move and park tractor so that “OIL LEVEL” mark at drain/fill port (B) is parallel to ground.

4. Add oil until it reaches level (A) at bottom of drain/fill plug (B). (See MFWD Axle Housing and Wheel Hub Oil in Section 100 Fuel, Lubricants and Coolants.)

   NOTE: Approximate MFWD wheel hub oil capacity is 0.8 L (0.2112 gal).

5. Apply pipe sealant with TEFLON® or equivalent to threads of plug (B).

6. Install plug and tighten to specifications.

   Item	Measurement	Specification
   Plug to Hub	Torque	70 N˙m (52 lb-ft)
