Pack Front Wheel Bearings—2WD

1.

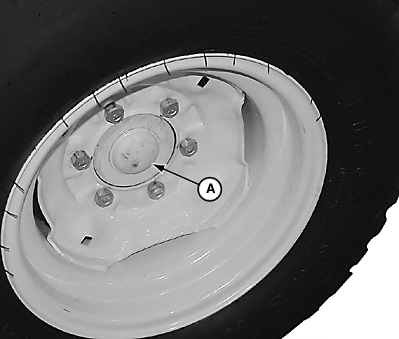

   LV14652-UN-17AUG11

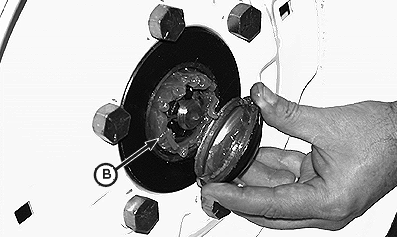

   LV4411-UN-06OCT99

   A - Hub Cap

   B - Multipurpose Grease

   Park tractor on level ground, place transmission in park, SHUT OFF engine and remove key.

---




2. Block rear wheels.

3. Jack up front end of tractor.

4. CAUTION: Support tractor securely on stands before removing a wheel.

   Remove hub cap (A), cotter pin and wheel nut.

5. Remove washer and wheel bearings. Clean all parts in solvent and blow dry with compressed air. Replace any worn or damaged parts.

6. Pack bearing with multipurpose grease (B). (See Grease in section 100 Fuel, Lubricants, and Coolant.) Coat seal with grease.

7. Install bearings, washer and wheel nut.

8. Tighten wheel nut until a slight drag is felt when hub is turned. Back nut off just enough to install cotter pin in hole in wheel spindle.

9. Install hub cap (A) and wheels. Tighten lug bolts to specification. Tighten bolts again after driving tractor 100 m (109 yd) and again after 3 hours and 10 hours of use.

   Item	Measurement	Specification
   2WD Front Axle Wheel Bolt	Torque	175 N˙m (130 lb-ft)
