Keep ROPS Installed Properly

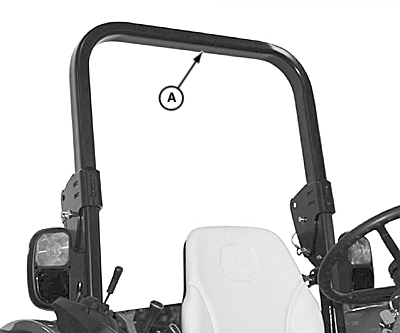

LV14680-UN-24AUG11

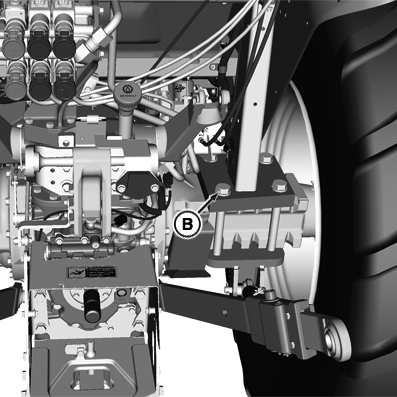

RXA0146929-UN-26JAN15

OOS Shown

A - ROPS Crossbar

B - Mounting Cap Screws (8 used)

CAUTION: Make certain all parts are installed correctly if roll over protective structure (ROPS) is loosened or removed for any reason. Replace and tighten mounting cap screws to specification.

If ROPS is subjected to structural damage, as in an overturn incident, the protection a ROPS offers is impaired. Protection is also impaired if ROPS is in any way altered via welding, bending, drilling, or cutting. Replace damaged ROPS, do not reuse. Any alteration to the ROPS requires approval by the manufacturer.

When installation of equipment on a machine necessitates loosening or removing rollover protective structure (ROPS) (A), replace and tighten mounting cap screws (B) to specification.

Item	Measurement	Specification
ROPS Mounting Cap Screws	Torque	365 N·m (284 lb.-ft.)
