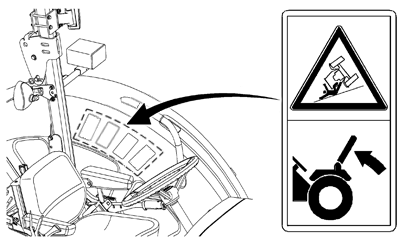

ROPS in Normal Position

CAUTION:

LV15638-UN-30SEP14

Left Fender

Use Foldable ROPS and Seat Belt Properly.

If this machine is equipped with a foldable roll-over protective structure (ROPS), keep the ROPS in the fully extended and locked position.

USE a seat belt when you operate with a ROPS in the fully extended position.

• Hold the latch and pull the seat belt across the body.
• Insert the latch into the buckle. Listen for a click.
• Tug on the seat belt to make sure the belt is securely fastened.
• Snug the seat belt across the hips.

If this machine is operated with the ROPS folded (e.g., to enter a low building), drive with extreme caution. DO NOT USE a seat belt with the ROPS folded. Return the ROPS to the raised, fully extended position as soon as the machine is operated under normal conditions.
