Turn Signal, High, and Low Beam Lights

LV15525-UN-05MAR12

LV15526-UN-05MAR12

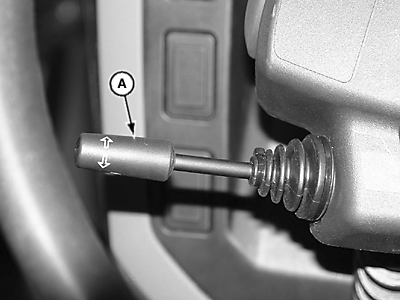

A - Turn Signal/High Beam Lever

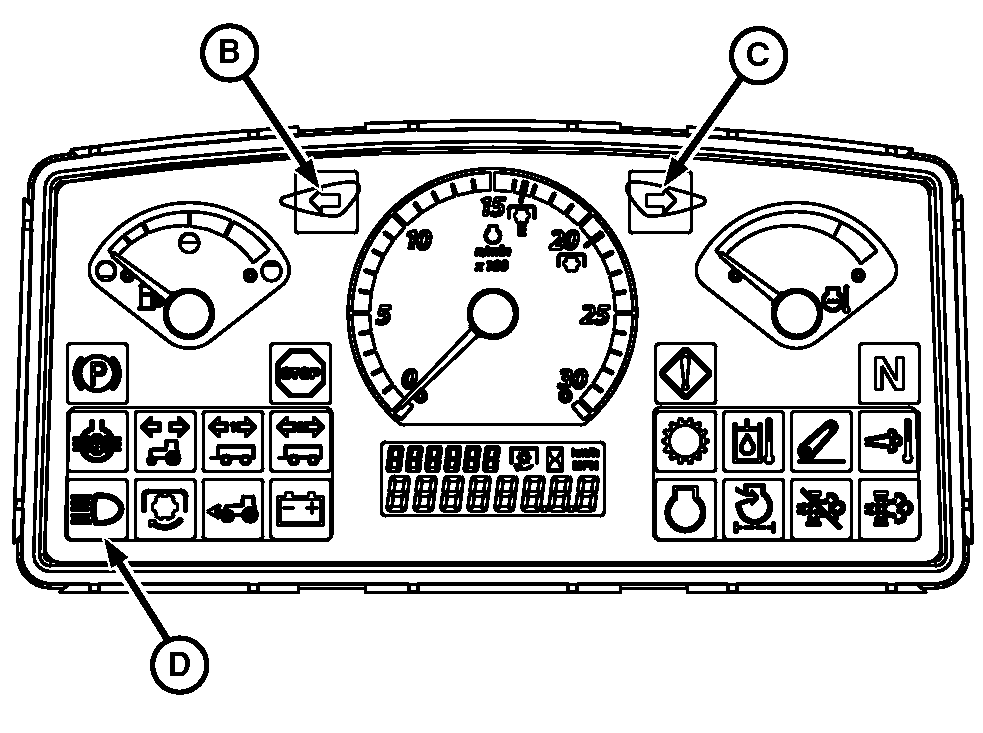

B - Left Turn Indicator

C - Right Turn Indicator

D - High Beam Indicator

Turn Signal Control Lever
Lever Position	Right Turn Signals	Left Turn Signals
Off	Off	Off
Up	On Flashing	On Steady
Down	On Steady	On Flashing

CAUTION: When on public roads, do not use work lights or high beams. Ensure that light switch is set to warning or road position dependent on climate conditions and turn signal lever is in normal (center) position.

Bright clear lights can blind or confuse drivers of other vehicles.

Pushing the lever forward turns on high beams.

Flash-to-Pass: If it becomes necessary to pass another vehicle, pull back on turn signal/high beam lever. High beams turn on until lever is released. When released lever automatically springs back to the low beam position.

Control Lever
Lever Position	High Beam	Low Beam
Normal (Center)	Off	On
Forward	On	Off
Rearward (Flash-to-Pass)	On	Off
