Bleed Fuel System

CAUTION: Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high pressure fluids.

If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A., by calling 18008228262 or +1 3097485636.

IMPORTANT: To avoid injection pump damage, DO NOT attempt to start the engine while bleeding the fuel system.

NOTE: Capture discharge waste in a suitably sized container and dispose of properly.

5085M, 5100M, and 5115M Tractors

X9811-UN-23AUG88

LV23097-UN-17SEP14

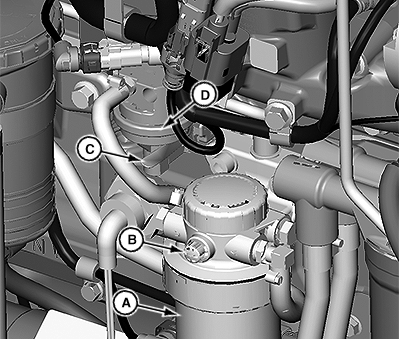

Fuel Filter and Fuel Transfer Pump (Right Hand Side)

A - Fuel Filter

B - Bleed Screw

C - Priming Mechanism

D - Transfer Pump

1. Park tractor on level ground and shut off engine. Remove key.

2. Check fuel level. Add if necessary.

3. Raise hood and locate fuel filter (A).

4. Loosen bleed screw (B) on filter housing two full turns.

5. Push priming mechanism (C) on transfer pump (D) until fuel runs out smoothly without spitting. Tighten bleed screw.

6. Lower hood.

5075M Tractor

X9811-UN-23AUG88

LV21905-UN-15MAY14

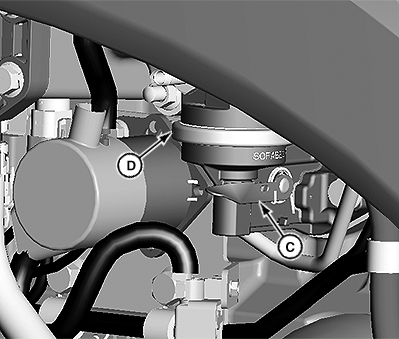

Transfer Pump (Right Hand Side)

LV21754-UN-01MAY14

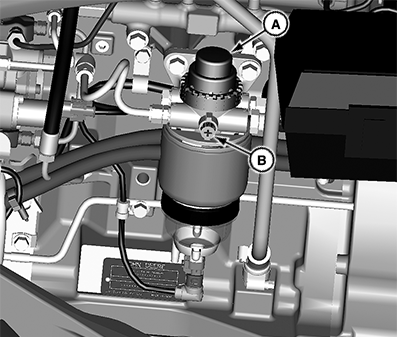

Fuel Filter (Left Hand Side)

1. Park tractor on level ground and shut off engine. Remove key.

2. Check fuel level. Add if necessary.

3. Raise hood and loosen bleed screw (B) on filter housing two full turns.

4. Push priming mechanism (C) on transfer pump (D) several times to get fuel to fuel filter.

5. Push priming pump (A) until fuel runs out smoothly without spitting. Tighten bleed screw.

6. Lower hood.
