Stop Tractor

1. CAUTION: Leaving transmission in gear with engine off WILL NOT prevent tractor from moving.

   IMPORTANT: Stop tractor before moving gear shift lever to PARK. Park lock will not engage and transmission may be damaged if tractor is moving.

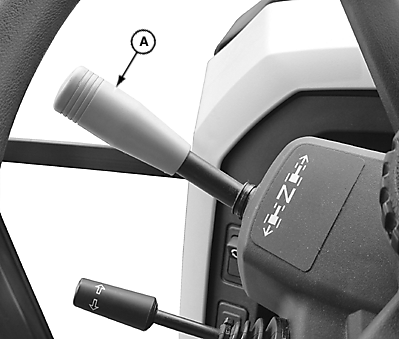

   LV15993-UN-22AUG12

   PowrReverser Lever

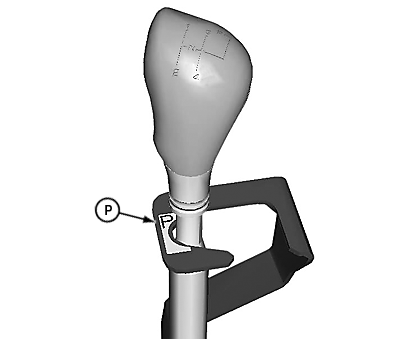

   LV14812-UN-27SEP11

   Park Lock Position

   A - Reverser Lever

   P - Park Position

   Stop tractor travel with brakes.

---




2. Place reverser lever (A) into NEUTRAL.

3. Depress clutch pedal and place range shift lever to NEUTRAL position. Place gear shift lever to PARK (P).

4. Lower all equipment to the ground.

5. Put all SCV levers in NEUTRAL.

6. Disengage PTO.

7. IMPORTANT: Cooling of certain engine parts is provided by engine oil. Stopping a hot engine suddenly could cause damage to these parts by overheating or lack of lubrication.


   LV15978-UN-15AUG12

   Cab shown


   LV14540-UN-02AUG11

   Key Position

   A - Hand Throttle

   B - Ignition Switch

   Pull hand throttle (A) back to slow idle position. Allow engine to idle for 2—5 minutes.

---




8. CAUTION: Remove key from ignition switch to prevent operation by untrained personnel.

   Turn key (B) to STOP position and remove from switch.
