Operate Mechanical Position Control—If Equipped

LV18049-UN-13JUN13

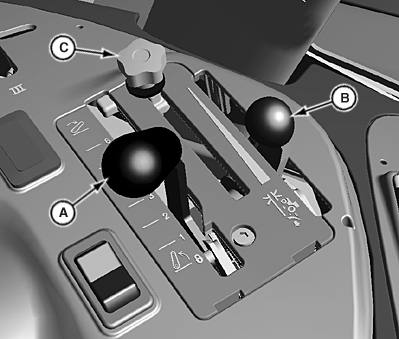

Cab

LV14560-UN-03AUG11

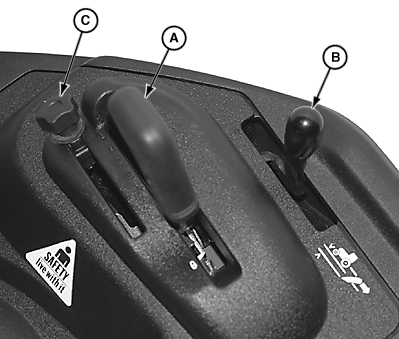

OOS

LV09233-UN-26JUL04

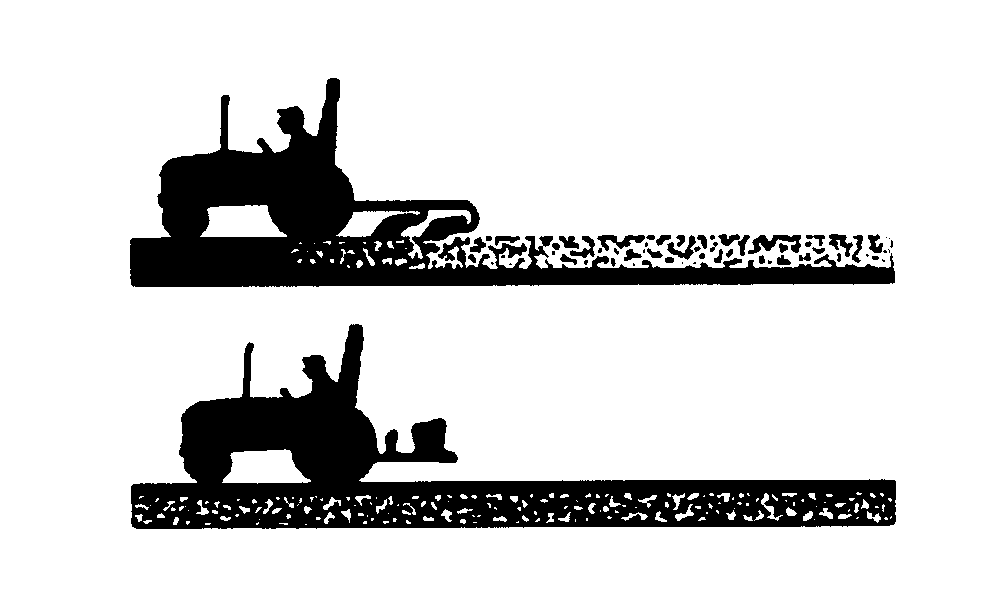

Depth Control

LV9457-UN-26JUL04

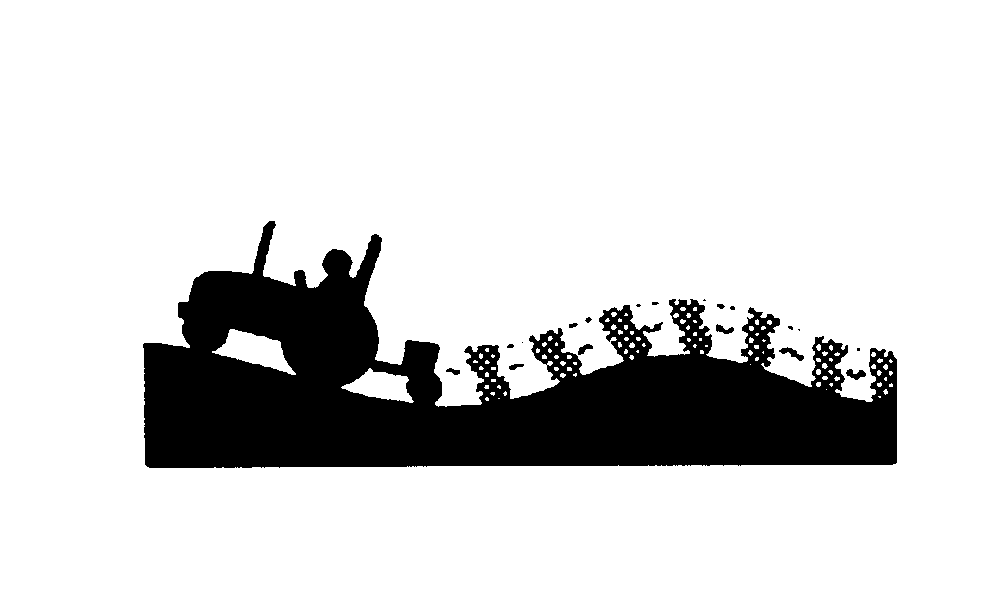

Float Control

A - Position Control Lever

B - Draft Control Lever

C - Position Control Lever Stop

CAUTION: To prevent unexpected movement, put draft control lever (B) in full forward position before attaching implement.

Rear hitch position lever (A) controls 3-point hitch mounted implement raise or lower movement and ground depth penetration.

IMPORTANT: Draft control setting automatically influences actual hitch position. For independent position control, move draft control lever (B) in full forward position.

NOTE: A few minutes of implement operation may be required to determine the best depth. Set desired depth with stop (C). Hitch returns implement to previous above or below ground depth.

Depth Control (level, in-ground, on-ground, and non-ground engaged situations): Position lever (A) at desired depth.

Float Control (uneven, ride on-ground contour situations): Position lever (A) and draft lever (B) fully forward.

NOTE: Ensure implement skids or height gauge wheels are set correctly to carry full implement weight. Ensure hitch draft link arms are adjusted for any required lateral float.

Height at Turn (end of field turn around situations): Position lever (A) rearward until implement is out of ground.

Implement Transport (load and non-load sense usage): Position lever (A) fully rearward.
