Operate Electrohydraulic Position Control—If Equipped

CAUTION: To prevent possible injury, use only position control lever (A) when attaching or detaching implements. Do not use quick raise/lower buttons (D).

NOTE: Engine must be running for electrohydraulic hitch controls to work.

LV16005-UN-22AUG12

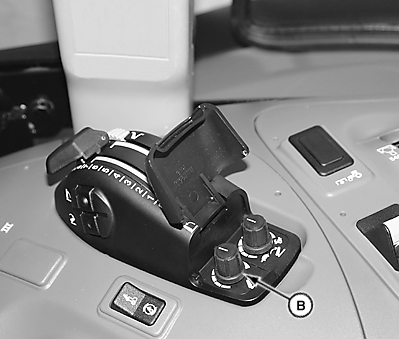

LV16004-UN-22AUG12

LV9457-UN-26JUL04

Float Control

LV09233-UN-26JUL04

Depth Control

A - Position Control Lever

B - Limit Knob

C - Position Control Lever Stop Wheel

D - Quick Raise/Lower Buttons

IMPORTANT: Draft control setting automatically influences actual hitch position. For independent position control, rotate draft knob fully counterclockwise. (Refer to Operate Electrohydraulic Draft Control—If Equipped, in this section.)

Adjust Position Control Depth Stop: Push down and rotate wheel (C) until stop sets to desired working depth. After raising hitch, implement returns to set depth when hitch position control lever (A) is pushed forward (lowered) to contact stop.

NOTE: If necessary to lower hitch below preset depth stop, lift position control lever (A) and push forward past stop.

NOTE: A few minutes of implement operation may be required to determine the best depth. Set desired depth with stop wheel (C). Hitch returns implement to previous above- or below-ground depth.

Depth Control (level, in-ground, on-ground, and non-ground engaged situations): Position lever (A) at desired depth.

Float Control (uneven, ride on-ground contour situations): Position lever (A) fully forward and rotate draft knob fully counterclockwise.

NOTE: Ensure implement skids or height gauge wheels are set correctly to carry full implement weight. Ensure hitch draft link arms are adjusted for any required lateral float.

Height at Turn (end of field turn-around situations): Position lever (A) rearward until implement is out of ground.

NOTE: Set hitch height with limit knob (B). Refer to Operate Electrohydraulic Height Limit Control—If Equipped, in this section.

Quick Raise at Turn (end of field turn around situations): Press and hold raise switch (D, top) until hitch implement NOT engaged in or on ground, but NOT fully raised.

NOTE: Set hitch height limit with limit knob (B).

LV09233-UN-26JUL04

Implement Transport

NOTE: Quick raise/lower buttons (D) are disabled when position control lever (A) is in transport lock position. Hitch rises to transport lock position when tractor is started.
