Set Tread—Multi-Position MFWD Wheels

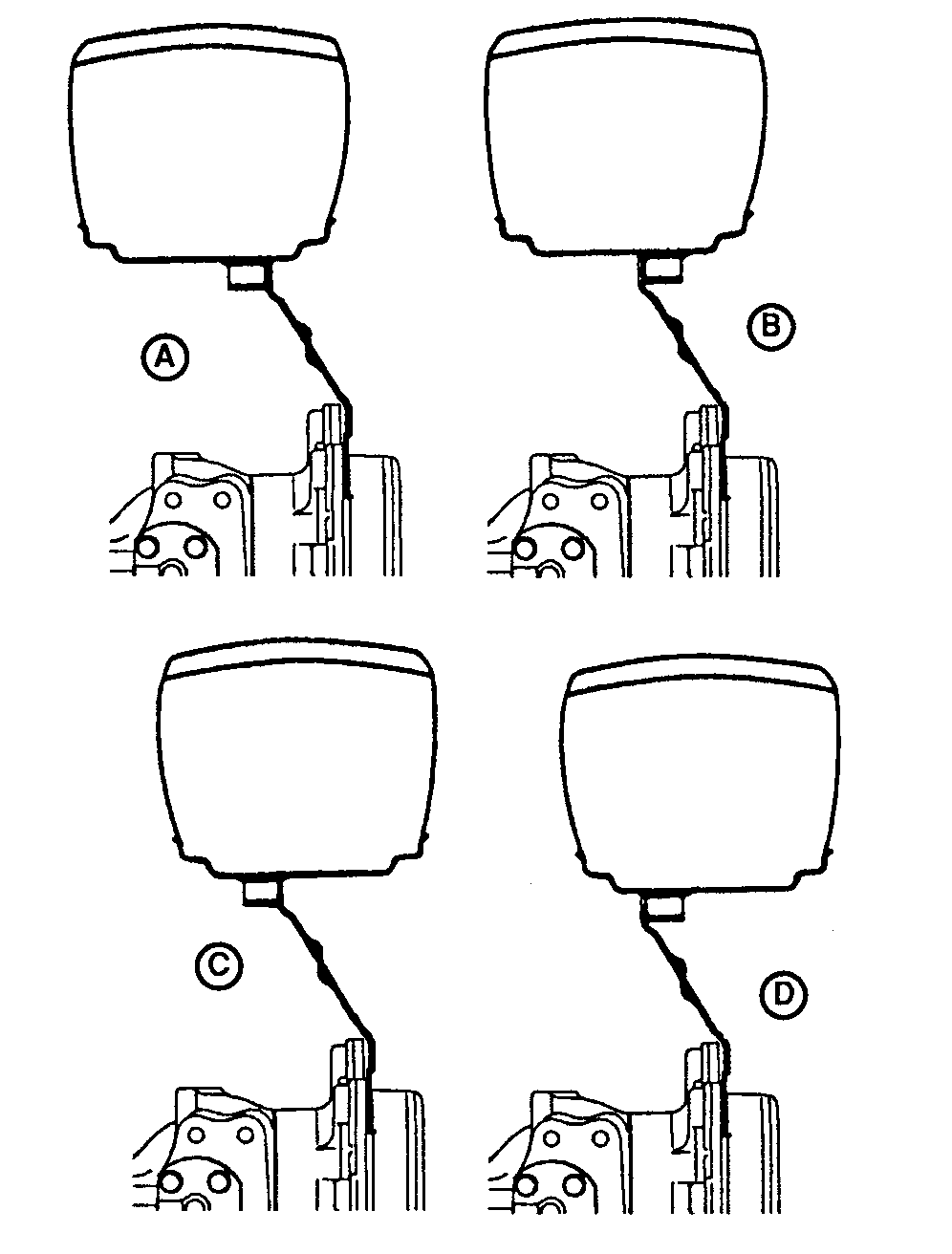

LV601-UN-22APR94

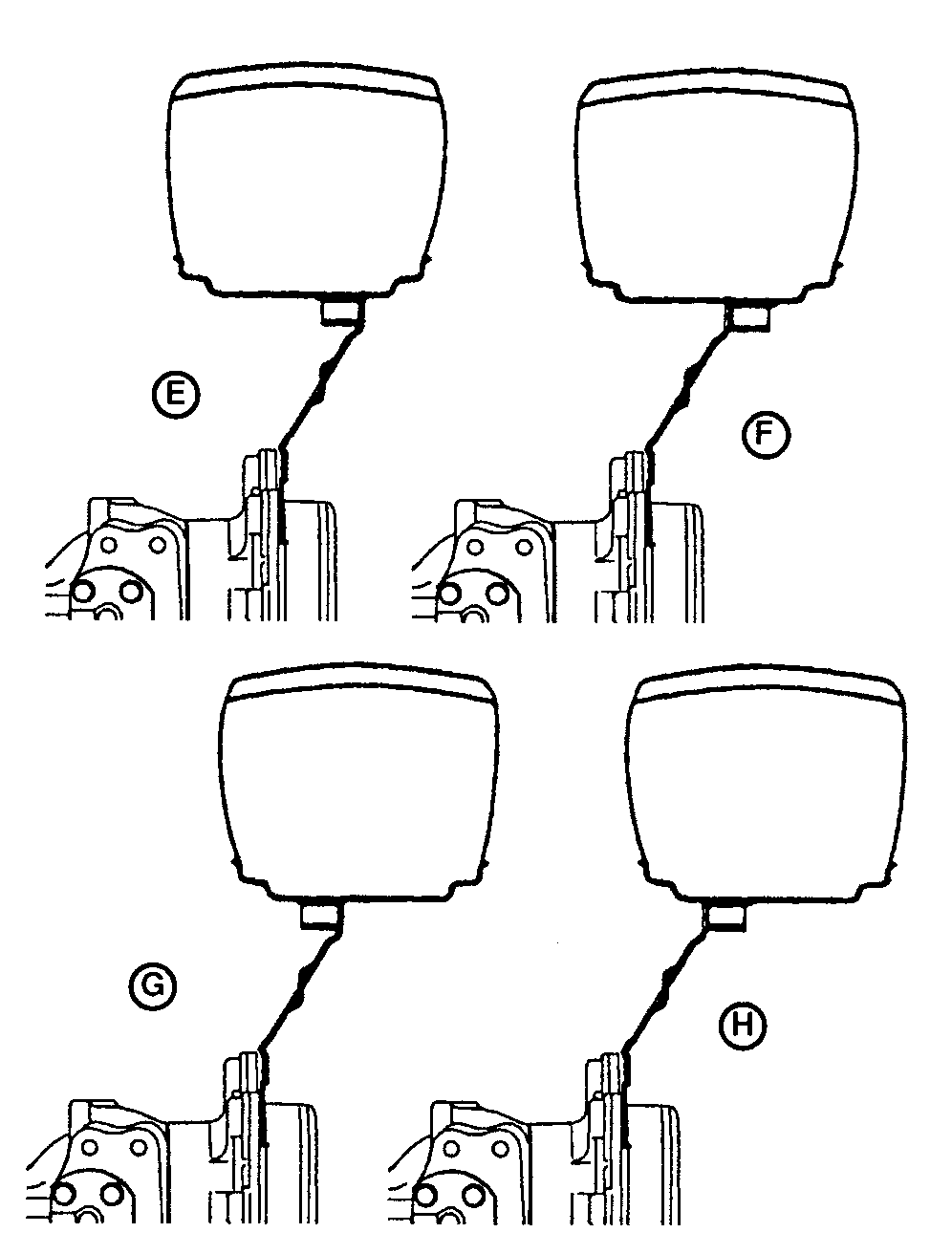

LV602-UN-22APR94
Wheel tread on MFWD axle with multi-position wheels can be adjusted by repositioning or exchanging the rims or by reversing the wheel disks.
Wheel tread can also be adjusted by exchanging the complete wheel to the opposite side of the tractor. (This maneuver permits the change from disk-dished-in to disk-dished-out operations without disassembling the wheel). When changing MFWD wheels from one side to the other, the arrow on side wall of tire points in the direction of forward rotation. In certain applications, MFWD equipped tractors may operate with the arrows in the opposite direction. (See Selecting Front Tire Rolling Direction in this section.)
Tread settings are measured at the middle of the tires at axle height.
IMPORTANT: After setting wheel spacing, tighten MFWD wheel rim-to-disk bolts and MFWD wheel disk-to-hub bolts to specification. Drive tractor 100 m (109 yd) and tighten again.
| Item | Measurement | Specification |
| MFWD Wheel Rim-to-Disk Bolts | Torque | 245 N˙m (180 lb-ft) |
| MFWD Wheel Disk-to-Hub Nuts | Torque | 300 N˙m (220 lb-ft) |
|
MULTI-POSITION MFWD WHEELS—TREAD WIDTH (Centerline-to-Centerline) |
||||||||
|---|---|---|---|---|---|---|---|---|
|
Diagram |
||||||||
|
Tire |
A |
B |
C |
D |
E |
F |
G |
H |
|
44X18-20 4PR R3; (Two Position Wheel) |
— |
— |
— |
— |
— |
— |
— |
— |
|
380/70R20 |
INT1 |
1451 mm (57.1 in.) |
1545 mm (60.8 in.) |
1654 mm (65.1 in.) |
1642 (64.6 in.) |
1751 (68.9 in.) |
1845 mm (72.6 in.) |
1954 mm (76.9 in.) |
|
11.2R24 (280/85R24) |
INT1 |
1398 mm (55.0 in.) |
1500 mm (59.1 in.) |
1596 mm (62.8 in.) |
1700 mm (66.9 in.) |
1798 mm (70.1 in.) |
1900 mm (74.8 in.) |
1998 mm (78.7 in.) |
|
12.4R24 (320/85R24) |
INT1 |
1398 mm (55.0 in.) |
1500 mm (59.1 in.) |
1596 mm (62.8 in.) |
1700 mm (66.9 in.) |
1798 mm (70.1 in.) |
1900 mm (74.8 in.) |
1998 mm (78.7 in.) |
|
13.6R24 (340/85R24) |
INT1 |
1398 mm (55.0 in.) |
1500 mm (59.1 in.) |
1596 mm (62.8 in.) |
1700 mm (66.9 in.) |
1798 mm (70.1 in.) |
1900 mm (74.8 in.) |
1998 mm (78.7 in.) |
|
380/70R24 |
INT1 |
1398 mm (55.0 in.) |
1500 mm (59.1 in.) |
1596 mm (62.8 in.) |
1700 mm (66.9 in.) |
1798 mm (70.1 in.) |
1900 mm (74.8 in.) |
1998 mm (78.7 in.) |
|
440/65R24 |
INT1 |
1387 mm (54.6 in.) |
1509 mm (59.4 in.) |
1605 mm (63.1 in.) |
1691 mm (66.6 in.) |
1787 mm (70.4 in.) |
1909 mm (75.2 in.) |
2005 mm (78.9 in.) |
|
11.2R28 (280/85R28) |
INT1 |
1430 mm (56.3 in.) |
1466 mm (57.7 in.) |
1562 mm (61.5 in.) |
1734 mm (68.3 in.) |
1830 mm (72.0 in.) |
1866 mm (73.5 in.) |
1962 mm (77.2 in.) |
|
9.5R28 (2 position wheel) |
1148 mm (45.2 in.) |
— |
— |
— |
— |
— |
— |
— |
|
1 Interference (do not use)
|
