Set Tread—Adjustable Front Axle
LV14725-UN-25AUG11
LV1515-UN-05MAR96

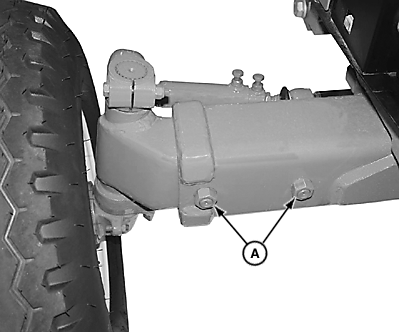

A - Adjustment Holes

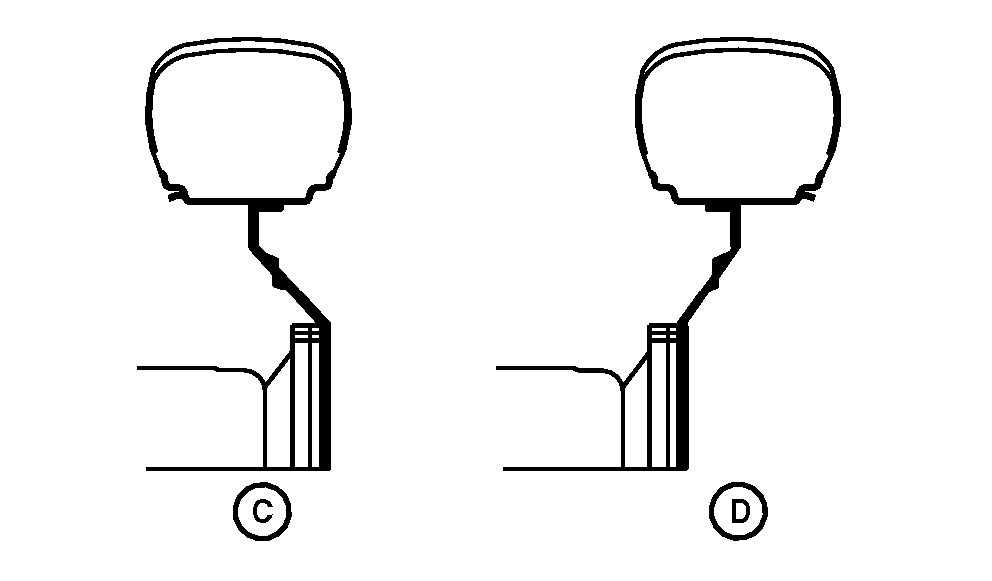

Front rims are offset. With some tires, this provides two tread spacings at each axle setting.NOTE: Tread settings are measured at the middle of the tires at axle height.
|
ADJUSTABLE FRONT AXLE TREAD SETTINGS Diagram C Centerline-to-Centerline |
||||||
|---|---|---|---|---|---|---|
|
Tread Position1 |
||||||
|
Tire |
1 |
2 |
3 |
4 |
5 |
6 |
|
11L-15 F2 11L-15 F3 |
1488 mm (58.6 in.) |
1588 mm (62.5 in.) |
1688 mm (66.5 in.) |
1788 mm (70.4 in.) |
1888 mm (74.3 in.) |
1988 mm (78.3 in.) |
|
9.5R28 R1W |
1148 mm (45.2 in.) |
— |
— |
— |
— |
— |
|
ADJUSTABLE FRONT AXLE TREAD SETTINGS Diagram D Centerline-to-Centerline |
||||||
|---|---|---|---|---|---|---|
|
Tread Position2 |
||||||
|
Tire |
1 |
2 |
3 |
4 |
5 |
6 |
|
11L-15 F2 11LL-15 F3 |
1570 mm (61.8 in.) |
1670 mm (65.7 in.) |
1770 mm (69.7 in.) |
1870 mm (73.6 in.) |
1970 mm (77.6 in.) |
2070 mm (81.5 in.) |
|
1 Tread
position 1 is with axle adjustment at its most inward location. See
ADJUST FRONT AXLE TREAD WIDTH in this section.
|
JZ81662,0001442-19-20140919 |
