Attach Implements to 3-Point Hitch

CAUTION: Hitch movement can cause injury or death.

IMPORTANT: Ensure center link and lift link adjustments DO NOT cause implement contact with fenders.

NOTE: Engine must be running for 3-point hitch control to work.

Before attaching or detaching implement, place load/draft control (B) into lowest setting. (See Adjust Draft Controls in Section 60.)

Use position control lever (A) to raise or lower implement. DO NOT use rear quick raise/lower buttons (D).

Be sure drawbar will not interfere. If necessary, move drawbar to fully retracted position or remove it. Check for any other potential interference.

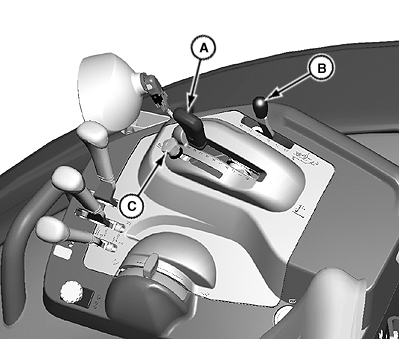

LV16009-UN-22AUG12

Mechanical Hitch (OOS shown; Cab similar)

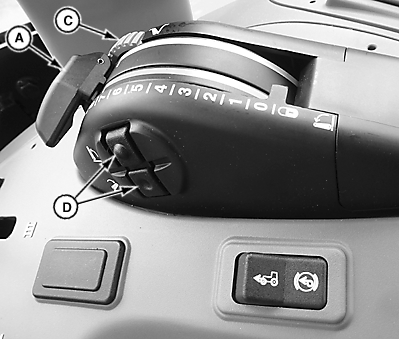

LV16005-UN-22AUG12

Electrohydraulic Hitch (Cab shown; OOS similar)

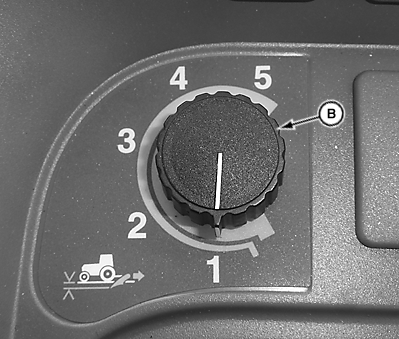

LV16011-UN-22AUG12

Electrohydraulic Hitch

A - Position Control Lever

B - Draft Sensing Control Lever/Knob

C - Hitch Control Lever Stop

D - Quick Raise/Lower Buttons

CAUTION: To prevent unexpected movement of rear hitch, place draft sensing control in lowest position before attaching implement to hitch.

Telescopic Draft Links—If Equipped

1.
   LV12577-UN-21APR05


   LV12578-UN-21APR05


   LV12579-UN-21APR05

   Standard Draft Link

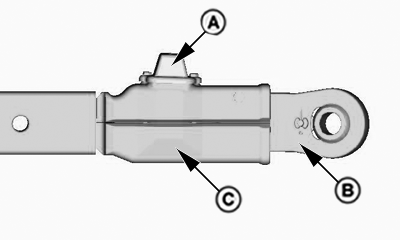

   PULV000566-UN-07MAY08

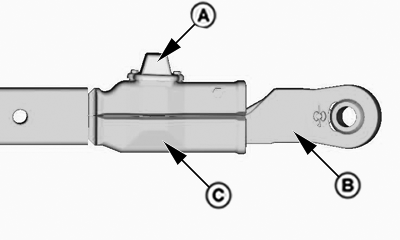

   PULV000567-UN-07MAY08

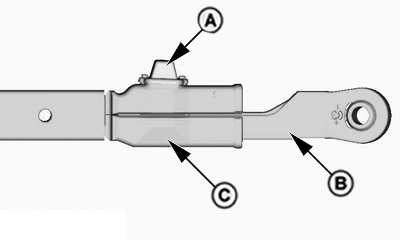

   PULV000568-UN-07MAY08

   Heavy Duty Draft Link

   A - Button or Lock Pin

   B - Draft Link End

   C - Draft Arm

   Move button or lock pin (A) toward center of tractor and pull out draft link end (B). Slip draft link end over implement hitch pin. Retain with quick-lock pin. Repeat on other side.

---




2. Raise or lower draft arms (C) to align ends (B) with arms, then slowly back up tractor to lock ends in place.


   PULV000242-UN-08MAR08

   Align 3-point


   LV16012-UN-22AUG12

   Center Link Locking Pin

   A - Implement

   B - Implement Hitch Pins

   C - Draft Link

   D - Center Link Locking Clip

   E - Tab

---




3. Back tractor up to implement (A) so hitch points align. Place transmission in PARK and stop engine.

4. Slip draft links (C) over implement hitch pins (B) and retain with quick-lock pins.

5. Push tab (E) backward and lift locking clip (D) to release center link from transport hook.

6. Attach center link to implement top mast.

7. Adjust center link and lift links as necessary. See ”Level Hitch” in this section.

8. CAUTION: To avoid bodily injury or machine damage whenever an implement, implement quick coupler, or other attachment is connected to the tractor 3-point hitch, check full range of operation for interference, binding or PTO separation.


   LV23109-UN-17SEP14

   A - Raise Switch

   B - Lower Switch

   Start engine. Using position control lever, slowly raise and lower implement and check for interference.

   NOTE: If equipped with electrohydraulic hitch use quick raise/lower buttons or fender-mounted switches (A and B) to raise and lower implement and check for interference.

---
