Select Drawbar Position

PULV000530-UN-11MAR08

PULV004940-UN-19JUN09

PULV000531-UN-11MAR08

PULV000513-UN-11MAR08

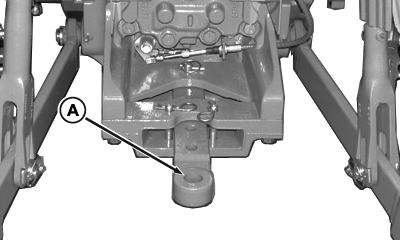

A - Drawbar

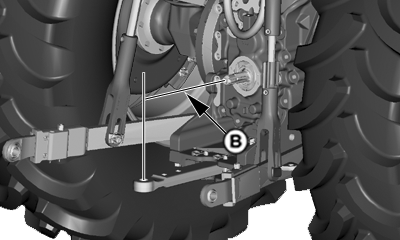

B - Measure From/To

CAUTION: Avoid injury from unexpected equipment movement. A safety chain will help control drawn equipment in case it accidentally separate from the drawbar.

Using the appropriate adapter parts, attach the chain to the tractor drawbar support. Provide only enough slack in the chain to permit turning.

See your John Deere dealer for a chain with a strength rating equal to or greater than the gross weight of the towed machine.

For maximum traction and efficiency, drawbar (A) should be positioned in the center, fully retracted position. (See implement operator's manual for more information.)

If needed, drawbar can be offset from center using slots provided in the drawbar support.

IMPORTANT: For drawn PTO-driven implements, drawbar must be extended to proper position.

Drawbar Positions
PTO Shaft	PTO Shaft End-to-Hitch Pin Hole (B)
540 rpm (6 spline)	350 mm or 400 mm (13.78 in. or 15.75 in.)
1000 rpm (21 spline)	400 mm (15.74 in.)

NOTE: Do not use safety chain for towing.
