Creeper Gear Operation

LV15988-UN-15AUG12

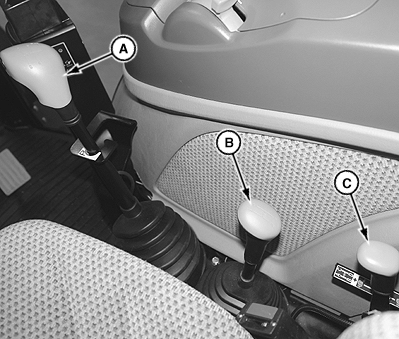

Cab

LV15989-UN-15AUG12

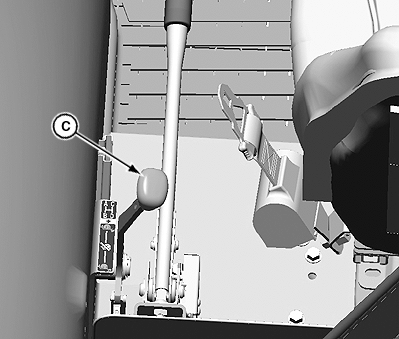

OOS

PULV000233-UN-06MAR08

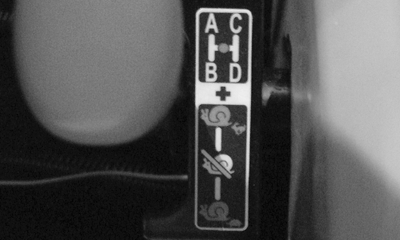

Decal, Cab Shown

A - Speed Shift Lever

B - Range Shift Lever

C - Creeper Lever

IMPORTANT: While applying creeper, direction control lever must be placed in direction (forward or reverse) after creeper lever and speed control lever.

A two-speed creeper gear is available as an option and provides slowest speed range.

Place range shift lever (B) in neutral to operate creeper. Change creeper lever (C) speed selection when at a complete stop.

PowrReverser™ and SyncReverser™ Transmission: Speed shift lever (A) provides eight forward travel speeds and eight reverse travel speeds in the creeper range.

PowrReverser™ Plus Transmission: Speed shift lever (A) provides 16 forward travel speeds and eight reverse travel speeds in the creeper range.
