Operating Rear PTO

NOTE:

LV15978-UN-15AUG12

Cab Shown; OOS Similar

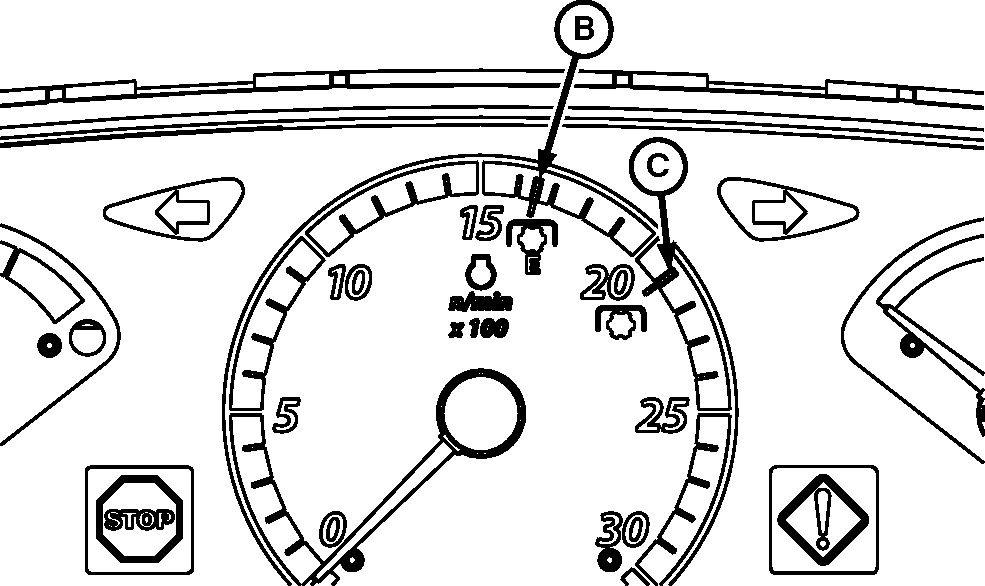

LV14399-UN-02JUN11

A - Hand Throttle

B - 540E Operation Speed

C - 540 Operation Speed

1. Depress clutch pedal, start engine, and push hand throttle lever (A) forward until tachometer indicates PTO rated speed:

   PTO Rated Speed
   PTO	Engine RPM Speed
   540	2100
   540E	1645
   1000	2100

   NOTE: When in 540E position, engine speed is limited to a maximum of 1815 rpm. 540E operation will not engage if engine speed is above 1815 rpm.

2. NOTE:


   LV15973-UN-10AUG12

   OOS


   LV15972-UN-10AUG12

   Cab

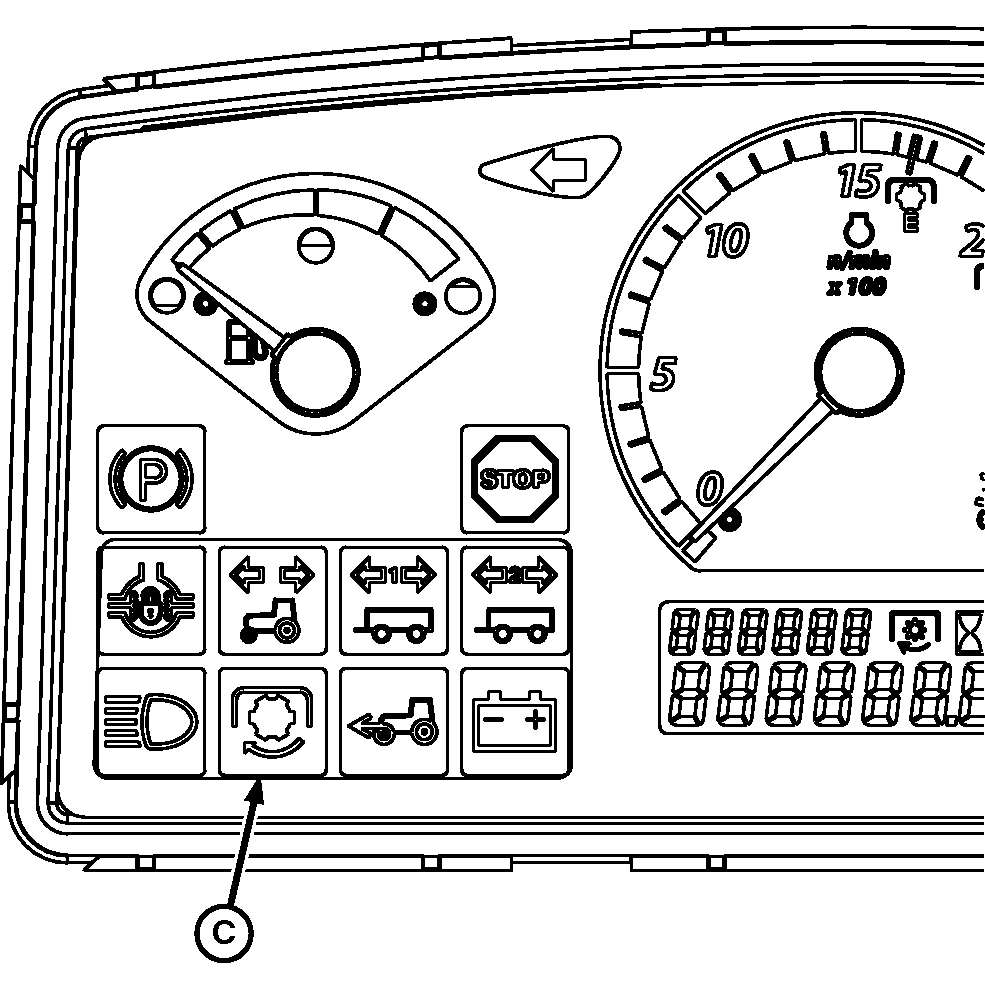

   LV14400-UN-02JUN11

   A - 540/540E PTO Speed Shift Lever

   B - PTO Engagement Switch

   C - PTO Indicator

   PTO may be engaged or disengaged without depressing clutch pedal.

   Engage PTO:

   Lift up (OOS), or push down and forward (Cab) switch (B) to engage PTO.

   PTO indicator (C) will light when PTO is engaged.

   IMPORTANT: A warning alarm will sound if operator leaves seat with PTO engaged.

   NOTE: If engine is stopped while PTO is engaged, restart engine, disengage PTO using switch (B) to reset and engage PTO.

   IMPORTANT: Do not use PTO speed shift lever to engage or disengage PTO.

---




3.
   LV15973-UN-10AUG12

   OOS


   LV15972-UN-10AUG12

   Cab


   LV14400-UN-02JUN11

   A - 540/540E PTO Speed Shift Lever

   B - PTO Engagement Switch

   C - PTO Indicator

   Disengage PTO:

   Push down (OOS), or pull back (Cab) switch (B) to disengage PTO.

   PTO brake automatically engages when PTO is disengaged.

   PTO indicator (C) is off when PTO is disengaged.

   IMPORTANT: Do not use PTO speed shift lever to engage or disengage PTO.

---

Operating PTO by Remote Fender Control—If Equipped

LV16121-UN-24SEP12

LV16122-UN-24SEP12

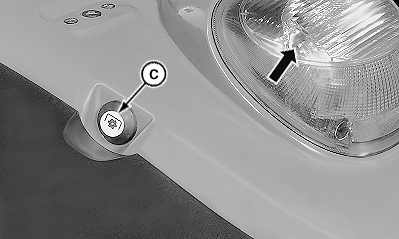

LV16123-UN-24SEP12

A - Remote PTO Enable Control Switch

B - Rear PTO Switch

C - Remote PTO Switch

To operate rear PTO from outside cab:

• Press remote PTO enable control switch (A).
• Push rear PTO switch (B) down and forward.

PTO does not start at this stage; a continuous whistle signal is heard and hazard warning lights flash. Rear PTO can now be switched on from outside cab as follows:

• Press remote PTO switch (C) on fender. Rear PTO slowly starts up, hazard warning lights go out but rear turn signal light remains on (see arrow).
• Release fender control switch (C) within 4 seconds. Rear PTO coasts down, whistle signal stops, and hazard warning lights flash.

If rear PTO is to be operated for an extended period of time:

• Press fender control switch (C) for at least 4 seconds until rear turn signal light (see arrow) goes out.

To switch off rear PTO:

• Press remote PTO switch (C) — the whistle signal sounds intermittently and hazard warning lights flash — or pull back rear PTO switch (B) in the cab .

NOTE: If rear PTO is switched on in cab, rear PTO may be switched off at remote PTO switch (C), but cannot be switched on again without re-entering cab.
