Road Transportation

LV14548-UN-02AUG11

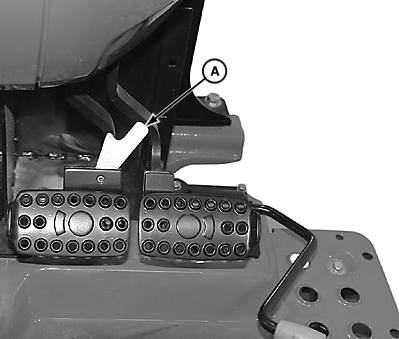

Brake Locking Bar

A - Brake Locking Bar

CAUTION: Before operating tractor on a road, lock brake pedals together using brake locking bar (A). Use brakes lightly and cautiously at transport speeds.

CAUTION: When transporting on a public road or highway, use accessory lights and devices for adequate warning to operators of other vehicles. Slow-moving tractors with attachments or towed equipment are difficult to see on public roads. Frequently check for traffic from the rear, especially in turns. Use your turn signals. Check local governmental regulations. Various safety devices are available from your John Deere dealer. Keep safety items in good condition. Replace missing or damaged items.

1.
   LV18449-UN-24JUL13

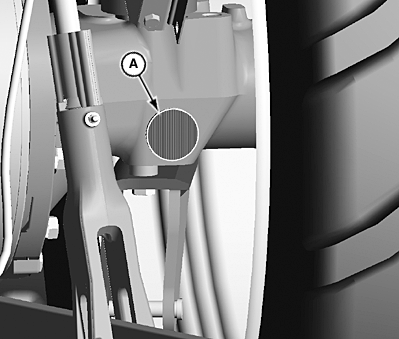

   Reflectors


   LV16056-UN-12SEP12

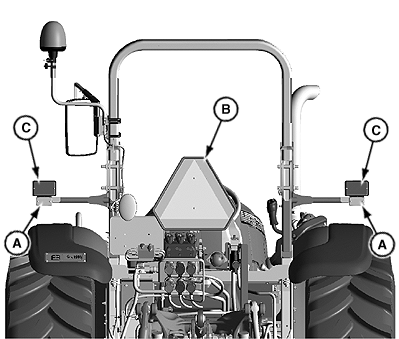

   Rear Lights—OOS


   LV16057-UN-12SEP12

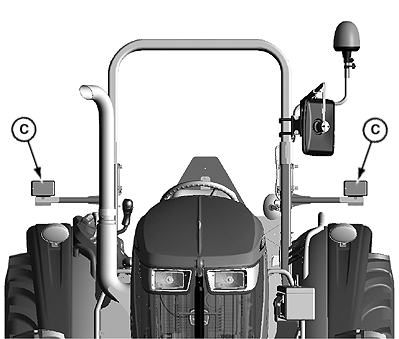

   Front Lights—OOS

   A - Reflectors

   B - SMV Emblem

   C - Turn Signal/Warning Lights

   D - Tail Lights/Brake Lights

   E - Turn Signal Lever

   Before driving tractor on roads:
   • Ballast tractor correctly.
   • Clean windows and adjust rear-view mirrors.
   • Use foot throttle instead of hand throttle.



---




2. Tap brake pedal to ensure differential lock is NOT engaged.

3. Check local laws and regulations for lighting requirements. Clean reflectors (A), slow moving vehicle (SMV) emblem (B), turn signal/warning lights (C), and tail lights/brake lights (D). If towed or rear-mounted equipment obstructs view of safety devices, install SMV emblem and warning lights on equipment. (See your John Deere dealer.)

   A seven-terminal outlet at rear of tractor supplies power to warning lights on towed or rear mounted equipment. (See description of outlet in Lights section.)

4. Use turn signal (E) when turning.

5. Drive slowly to maintain safe control. Before descending a hill, shift to a lower gear to control speed without using brakes. Slow down for rough ground and sharp turns, especially when transporting heavy, rear-mounted equipment.

6.
   LV15507-UN-05MAR12

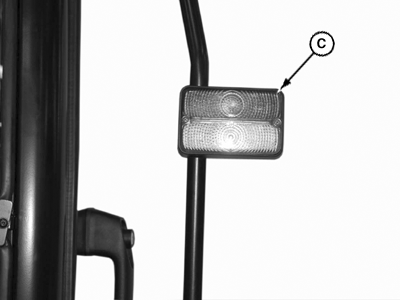

   Front Lights—Cab


   LV16022-UN-28AUG12

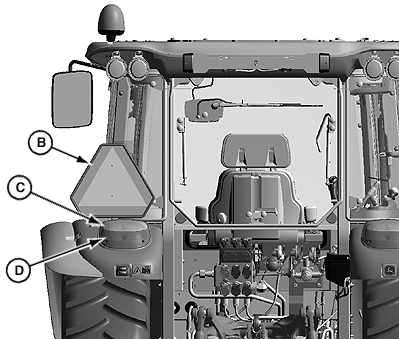

   Rear Lights—Cab


   LV15510-UN-05MAR12

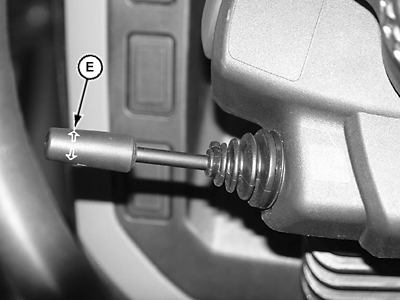

   Turn Signal Lever

   A - Reflectors

   B - SMV Emblem

   C - Turn Signal/Warning Lights

   D - Tail Lights/Brake Lights

   E - Turn Signal Lever

   Differential Lock (if equipped): Remove foot from differential lock switch and tap (apply) brakes.

---




7. MFWD (if equipped): Disengage front-wheel drive when transporting tractor. When driving on roads, engage BRAKE ASSIST (if equipped) position of MFWD switch to provide four-wheel braking.

8. Loader Cylinders (if equipped): Engage transport lock to eliminate possibility of loader movement during transport by inadvertently bumping the multifunction control lever.

9. Rear Hitch: Lock hitch in transport position to eliminate the possibility of lowering an implement during transport by inadvertently bumping the raise/lower lever.
