Fuse and Relay Size and Function

Open Operator Station

NOTE: OOS with PowrReverser™ Transmission, PowrReverser™ Plus Transmission or SyncReverser™—Diode Module, relay K07, relay K11, relay K27, and relay K28 are located in front console.

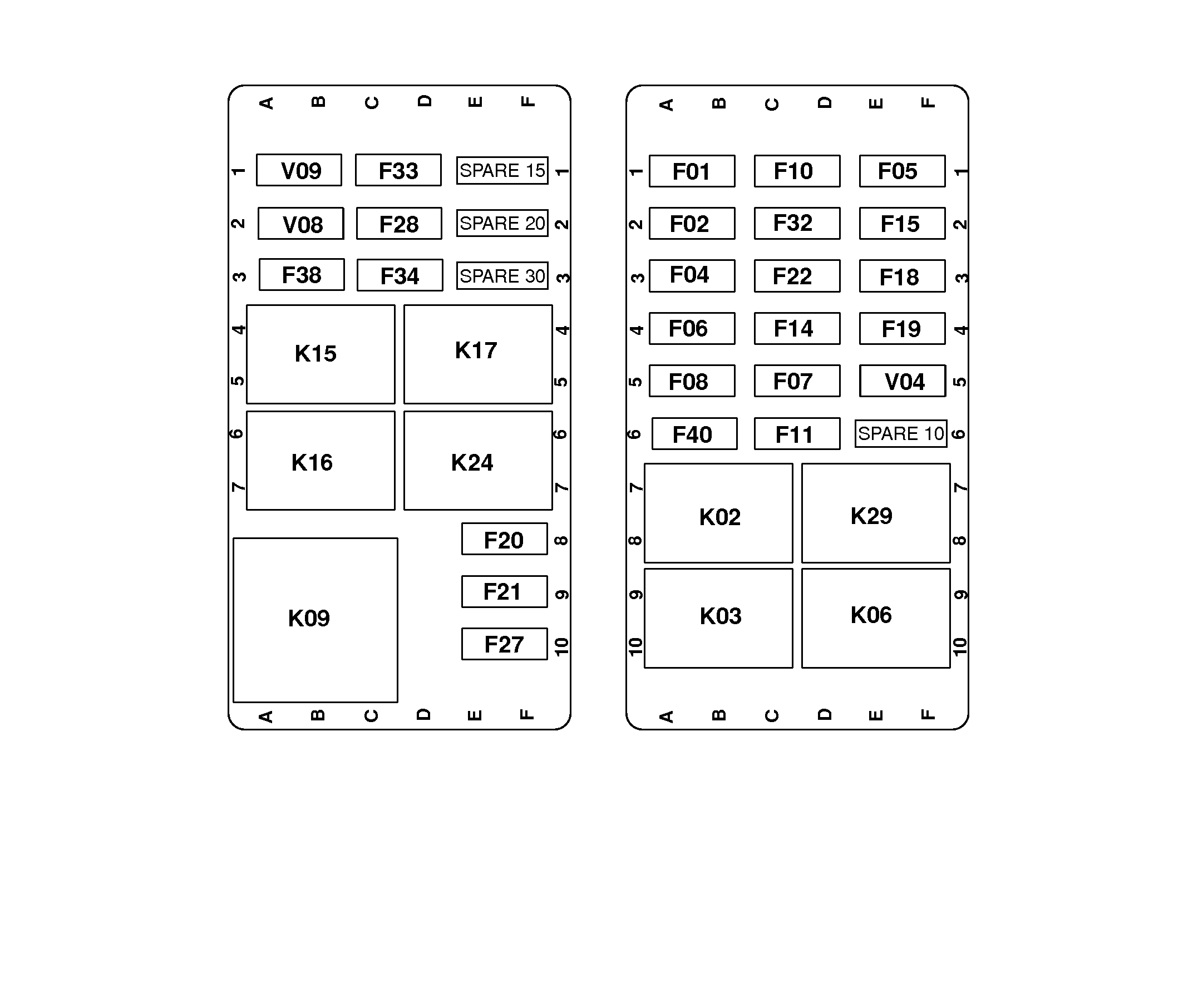

LV16136-UN-06MAY13

OOS with PowrReverser or SyncReverser Transmission

F01 - Key Switch Fuse

F02 - Turn Signal Relay/Warning Fuse

F04 - Light Switch Fuse

F05 - High/Low Beam Headlights Fuse

F06 - Junction Block Fuse

F07 - Turn Signal Fuse

F08 - Instrument Cluster Fuse

F10 - Trailer Power Relay Fuse

F11 - Junction Block Fuse

F14 - Front Work Light Relay Fuse

F15 - Tail Light Fuse

F18 - ELX Circuit Power Fuse

F19 - Electrohydraulic Control Unit (EHC) Fuse

F20 - Electrohydraulic System/Sensor Excitation Fuse

F21 - Electrohydraulic System Fuse

F22 - Horn Fuse

F27 - Backup Alarm Fuse

F28 - Right Tail Light Fuse

F32 - Engine Control Unit (ECU) Fuse

F33 - Flood Light Fuse

F34 - Come Home Fuse

F38 - Front Implement Directional Fuse

F40 - Multi-function Control Lever Fuse

K02 - Left Turn Signal Relay

K03 - Right Turn Signal Relay

K06 - Trailer Power Relay

K07 - Accessory Relay

K09 - Front Work Light Relay

K11 - Neutral Relay

K15 - Electrohydraulic System Relay

K16 - Not Neutral Relay

K17 - Transmission Enable Relay

K24 - Forward High Relay

K27 - Headlight Relay

K28 - High/Low Beam Light Relay

K29 - Rear/ Clearance License Relay

V01 - Diode Block/Module

V04 - Electrohydraulic System Relay Diode

V08 - Right Hazard Light Relay Diode

V09 - Left Hazard Light Relay Diode

Cab

NOTE: Cab with PowrReverser™ Transmission, PowrReverser™ Plus Transmission or SyncReverser™—Diode Module, relay K07, relay K11, relay K27, and relay K28 are located in front console.

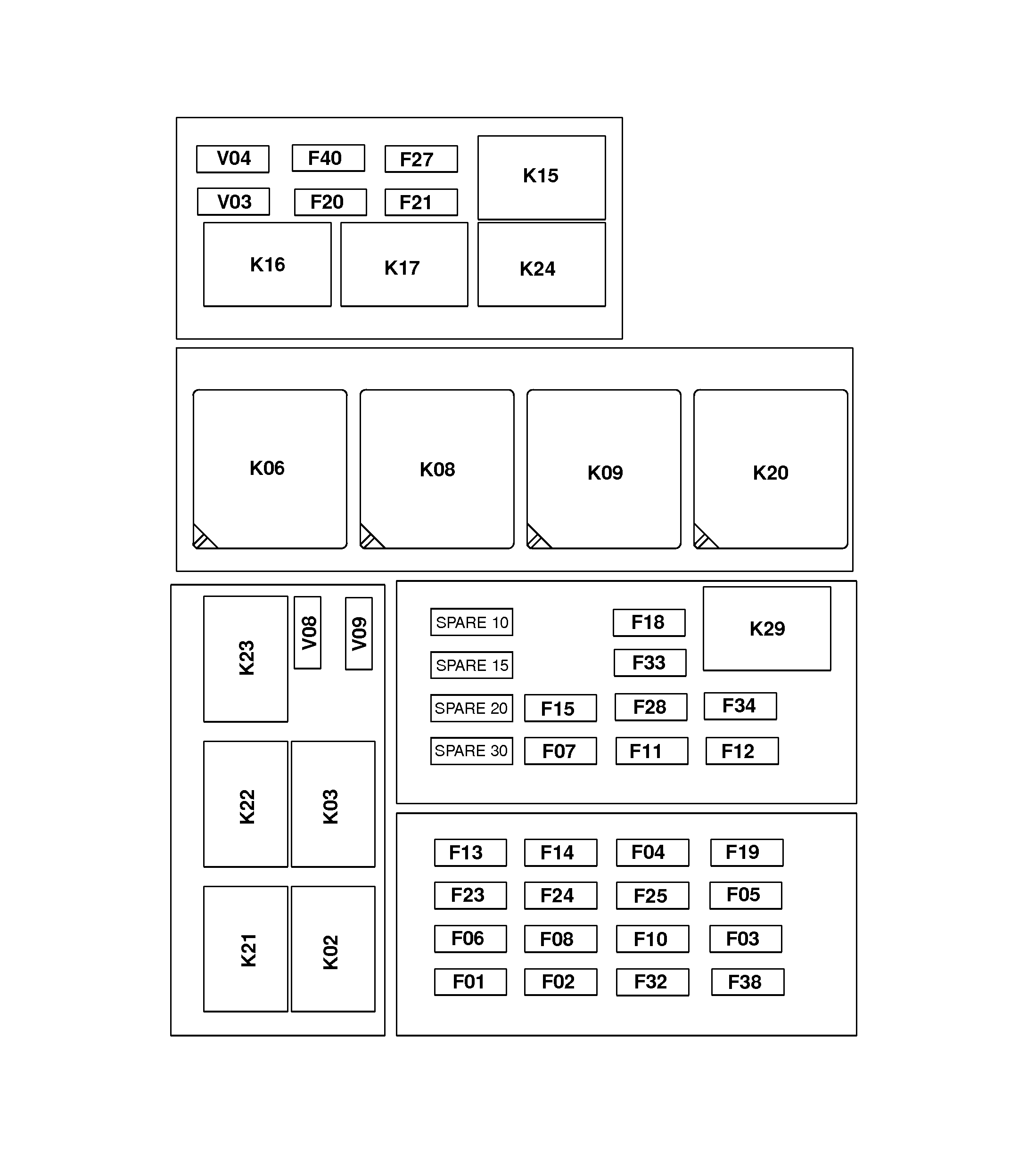

LV16137-UN-03MAY13

Cab with PowrReverser or SyncReverser Transmission

F01 - Key Switch Fuse

F02 - Turn Light/Warning Light Relay Fuse

F03 - Horn Fuse

F04 - Light Switch Fuse

F05 - High/Low Beam Light Fuse

F06 - Junction Block Fuse

F07 - Turn Switch

F08 - Instrument Cluster Fuse

F10 - Trailer Power Relay Fuse

F11 - Junction Block Fuse

F12 - Radio/Clock Fuse

F13 - Rear Work Light

F14 - Front Work Light

F15 - Tail/Turn Light Fuse

F18 - ELX Fuse

F19 - Electronic Control Unit Fuse

F20 - Electrohydraulic System Relay Fuse

F21 - Electrohydraulic System Relay Fuse

F23 - Heater, Ventilation and Air Conditioner

F24 - Wiper Motor Fuse

F25 - Blower Fuse

F27 - Backup Alarm Fuse

F28 - Tail/Turn Light Fuse

F32 - Engine Control Unit Fuse

F33 - Flood Lamp Fuse

F36 - Come Home Fuse

F38 - Front Implement Directional Fuse

F40 - Multi-Function Control Lever Fuse

K02 - Left Turn Relay

K03 - Right Turn Relay

K06 - Trailer Power Relay

K07 - Accessory Power Relay

K08 - Rear Work Light Relay

K09 - Front Work Light Relay

K11 - Neutral Relay

K15 - Electrohydraulic System Power

K16 - Not Neutral Relay

K17 - Transmission Enable Relay

K20 - Heater, Ventilation and Air Conditioner Relay

K21 - Wiper Relay

K22 - Left Blower Relay

K23 - Right Blower Relay

K24 - Forward High Speed Relay

K27 - Headlight Relay

K28 - High/Low Beam Relay

K29 - Tail/Clearance Light Relay

V01 - Diode Block/Module

V03 - Remote PTO Warning Switch Diode

V04 - Electrohydraulic System Relay Diode

V08 - Right Hand Hazard Light Relay Diode

V09 - Left Hand Hazard Light Relay Diode
