Replace Tail Light Bulb—Cab and Deluxe OOS

1.

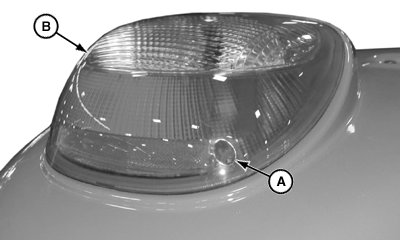

   LV14850-UN-04OCT11

   Cab and Deluxe OOS; Left Side Shown

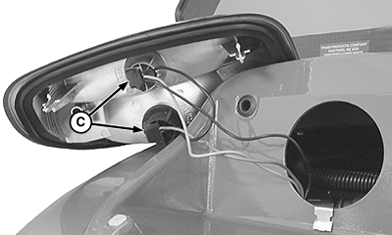

   LV12532-UN-13APR05

   A - Screw (2 used)

   B - Housing

   C - Socket (2 used)

   Remove screws (A).

---




2. Pull housing (B) away from fender.

3. Rotate socket (C) and remove from housing.

4. Pull bulb to remove from socket.

5. Install new bulb and socket in housing.

6. Install housing on fender with screws.
