Change Engine Speeds

LV15978-UN-15AUG12

Hand Throttle (Cab Shown)

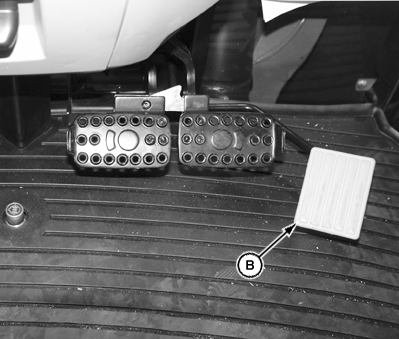

LV18041-UN-11JUN13

Foot Throttle (Cab Shown)

A - Hand Throttle

B - Foot Throttle

Depress foot throttle (B) to increase engine speed temporarily above hand throttle setting.

NOTE: Use hand throttle only when operating in the field.
