Check Neutral Start System

LV15528-UN-05MAR12

LV14425-UN-17AUG11

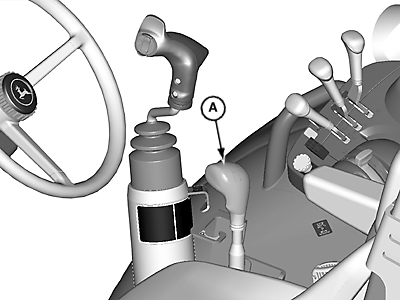

A - Gear Shift Lever

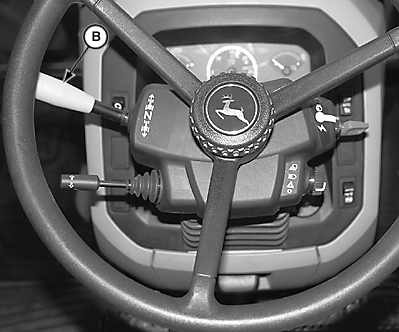

B - Reverser Lever

Tractor is equipped with interlocks to prevent inadvertent movement when engine is cranked to start.

Transmission Controls

1. Depress clutch pedal and brake pedals.

2. Place gear shift lever (A) in any position EXCEPT neutral or park.

   If equipped with reverser, place reverser lever (B) into forward or reverse direction position.

3. Attempt to start engine. If engine starts when transmission controls are not in neutral or park position, neutral start system should be repaired. See your John Deere dealer immediately.

Engine should start in NEUTRAL or PARK positions only.

PTO Controls

LV15972-UN-10AUG12

Cab

LV15973-UN-10AUG12

OOS

A - PTO Shift Lever

B - PTO Engagement Switch

1. Depress clutch pedal and brake pedals.

2. Place transmission speed shift lever in NEUTRAL or PARK position.

3. IMPORTANT: Do NOT move lever (A) with PTO engaged.

   If equipped, place PTO shift lever (A) into any position.

4. Place PTO engagement switch (B) in engaged position.

5. Start engine. Engine will start but PTO will not rotate. If PTO rotates in any position, neutral start system should be repaired. See your John Deere Dealer immediately.

   CAUTION: Do not leave seat with engine running and PTO engaged. PTO will not disengage automatically, but provide audible alarm for approximately 8 seconds.
