Foot-Operated Controls

Cab Foot-Operated Controls

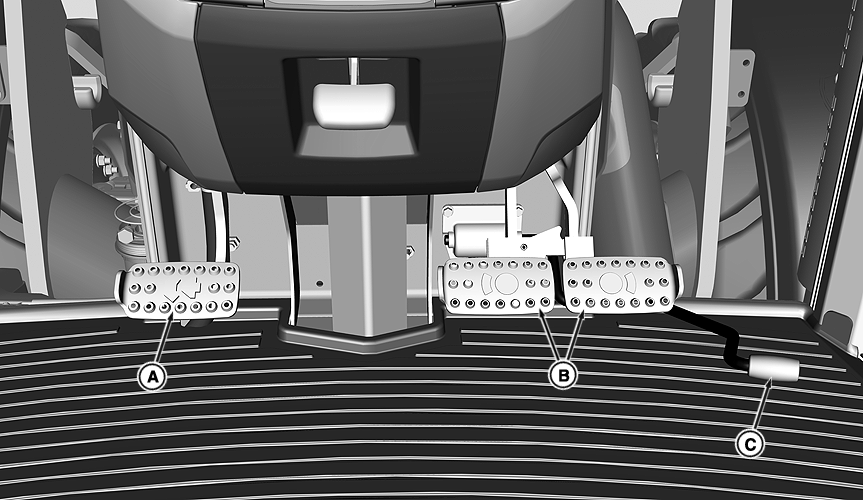

RXA0145856-UN-13OCT14

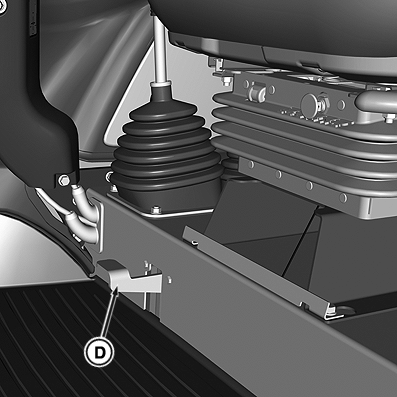

RXA0145857-UN-13OCT14

A - Clutch Pedal

B - Brake Pedals

C - Foot Throttle

D - Differential Lock Switch

Open Operator Station Foot-Operated Controls

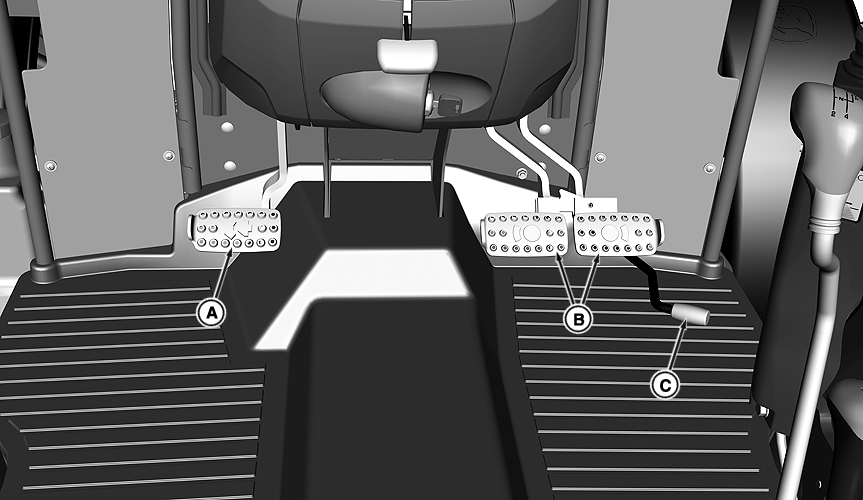

RXA0145859-UN-13OCT14

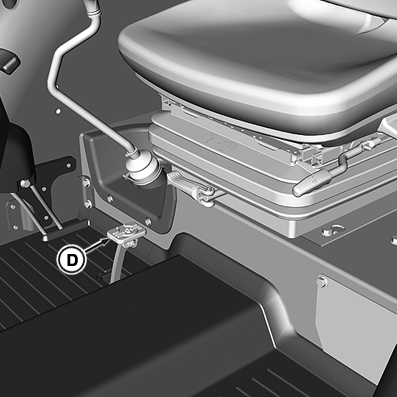

RXA0145860-UN-24OCT14

A - Clutch Pedal

B - Brake Pedals

C - Foot Throttle

D - Differential Lock Switch
