Front Console Switches and Controls

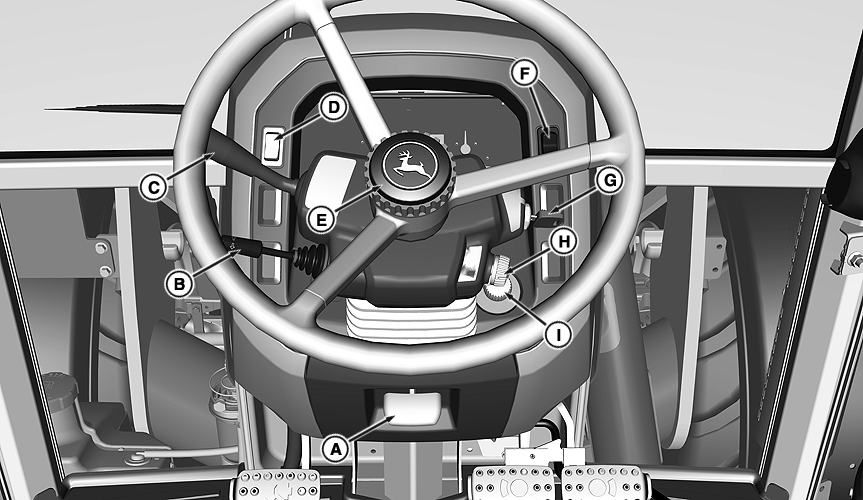

Cab Front Console Switches and Controls

RXA0145855-UN-13OCT14

A - Steering Wheel Tilt Lever

B - Turn Signal and Horn (If Equipped)

C - Forward-Neutral-Reverse Lever

D - Roll Mode Switch

E - Steering Wheel Telescopic Knob

F - Regeneration Switch

G - Key Switch

H - Headlight Switch

I - Wiper Switch

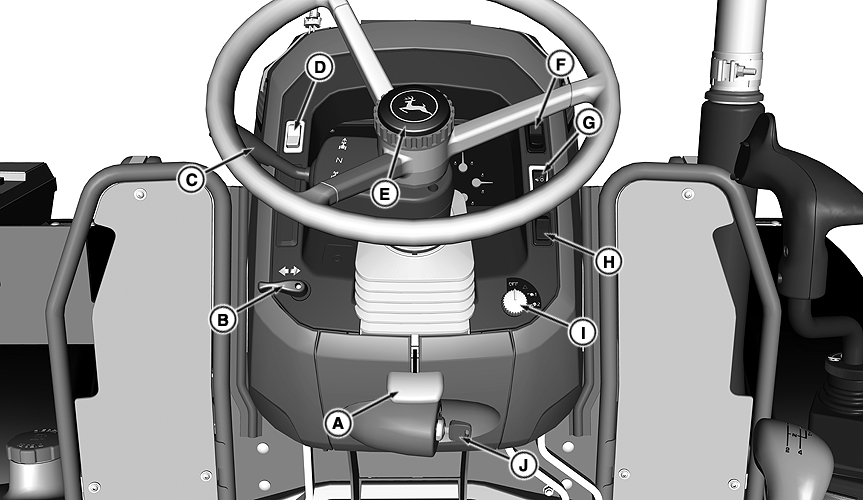

Open Operator Station Console Switches and Controls

RXA0145858-UN-13OCT14

A - Steering Wheel Tilt Lever

B - Trun Signal

C - Forward-Neutral-Reverse Lever

D - Roll Mode Switch

E - Steering Wheel Telescopic Knob

F - Regeneration Sitch

G - MFWD Switch

H - High/Low Beam Switch

I - Headlight Switch

J - Key Switch
