Turn Signal, High, and Low Beam Lights

CAUTION: When on public roads, do not use work lights or high beams. Ensure that light switch is set to warning or road position dependent on climate conditions and turn signal lever is in normal (center) position.

Bright clear lights can blind or confuse drivers of other vehicles.

LV15525-UN-05MAR12

LV21832-UN-20MAY14

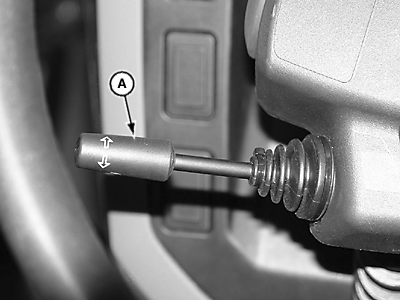

A - Turn Signal-High Beam Lever

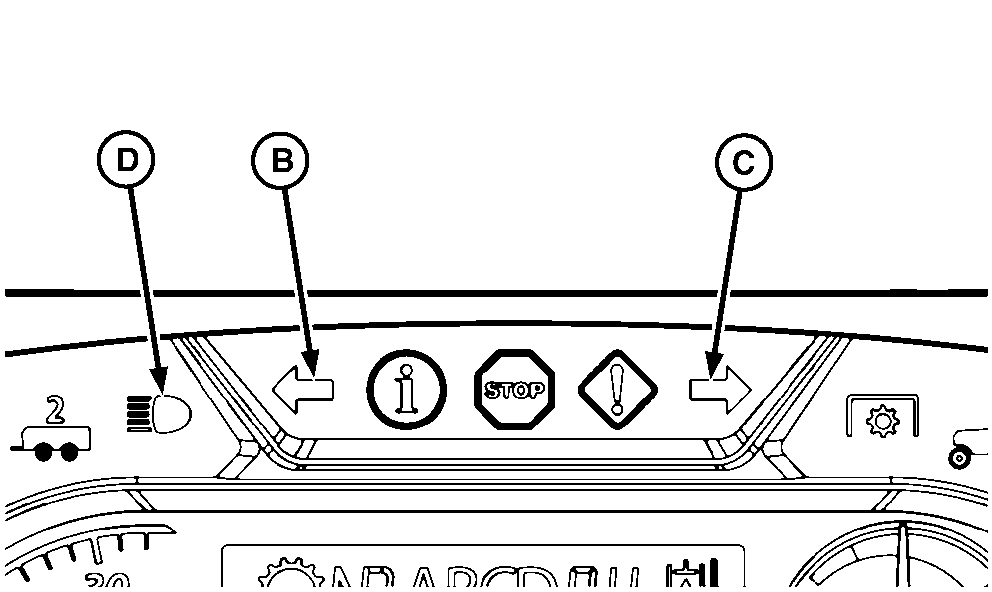

B - Left Turn Indicator

C - Right Turn Indicator

D - High Beam Indicator

Turn Signal Control Lever
Lever Position	Right Turn Signals	Left Turn Signals
Off	Off	Off
Up	On Flashing	On Steady
Down	On Steady	On Flashing

Any time light switch is in working or road position, high beam lights turn on by pushing turn signal lever to forward position.

CAUTION: If passing another vehicle is necessary, ensure that there is adequate clearance on all sides to pass safely.

If the operator must pass another vehicle on the road, turn signal is equipped with a flash-to-pass feature.

Before passing a vehicle, pull back on the turn signal lever and release. High and low beams momentarily flash. The lever is spring loaded to return to the normal (center) position.

Turn Signal Control Lever
Lever Position	High Beam	Low Beam
Normal (Center)	Off	On
Forward	On	Off
Rear (Flash-to-Pass)	On	On
