Adjusting Operator Seat

RXA0146050-UN-23OCT14

Mechanical OOS Seat

LV21921-UN-22MAY14

Lumbar Support Knob

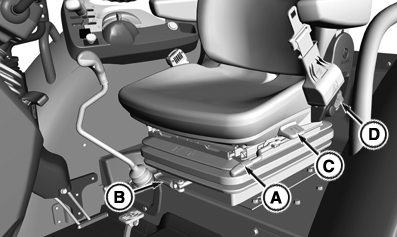

A - Forward or Backward Adjustment Lever

B - Weight Adjustment Lever

C - Swivel Handle

D - Backrest Adjustment Handle

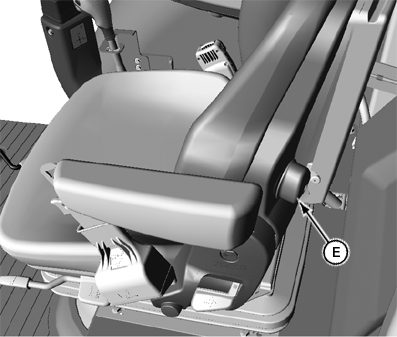

E - Lumbar Support Adjustment Knob

CAUTION: To avoid accidents, adjust seat before driving.

IMPORTANT: While adjusting seat, make sure that all controls can be easily accessed.

Adjust to suit operator. Four seat adjustments are available:

Forward or Backward Adjustment

1. Lift forward or backward adjustment lever (A).
2. Slide seat to desired position.
3. Release forward or backward lever (A) to lock seat in position.

Weight Adjustment

NOTE: When properly adjusted, suspension rides smooth without bottoming out.

Turn weight adjustment lever (B) clockwise or counterclockwise to reach desired suspension travel for operator weight.

Swivel Adjustment

1. Lift on swivel handle (C).
2. Swivel seat to left or right, as desired.
3. Push swivel handle down to lock in position.

Backrest Adjustment

1. Lift on backrest adjustment handle (D).
2. Adjust backrest to desired position.
3. Release handle to lock backrest into position.

Lumbar Support

Turn lumbar support adjustment knob (E) clockwise or counterclockwise until desired lumbar support is reached.
