Adjust Steering Wheel Tilt and Height

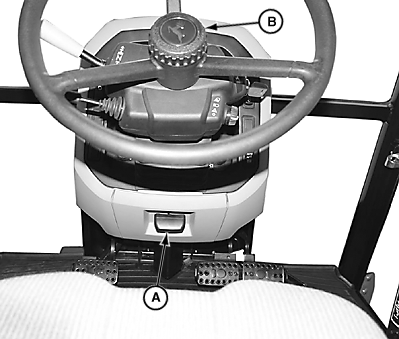

LV14506-UN-29JUL11
A - Steering Wheel Tilt Lever
B - Steering Wheel Telescope Release Ring
Tilt: Lift lever (A) and move steering column to desired angle.Telescoping: Loosen telescope release ring (B) and adjust steering wheel to desired height. Tighten ring to lock into position.
|
GS25068,0001401-19-20141021 |
