Adjusting Seat

CAUTION: To avoid accidents, adjust seat before driving.

NOTE: Use these instructions as a guideline. Since everybody is different, the final settings must be determined by personal preferences. Each operator should make adjustments that suit them best.

the weight adjustment should be performed each time the height adjustment is changed.

For best results, make adjustments while seated in the operating position.

Air Suspension Seat

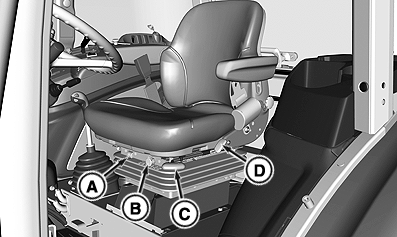

RXA0146059-UN-23OCT14

Air Suspension Seat

A - Weight Indicator

B - Height Adjustment Control

C - Foreward or Backward Adjustment Lever

D - Back Rest Adjust,ment

Adjust to each operator's personal preference; there are three available seat adjustments:

Height: While seated, pull adjustment knob (B) out to raise seat. Push adjustment knob to lower seat. Release knob to lock in position.

Forward or Backward: Lift forward/backward adjustment lever (C), move seat to desired position.

Back Rest Adjustment: Lift back rest adjustment lever (D), to move back rest to desired position.

Mechanical Adjustment Seat

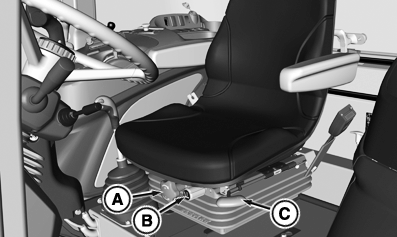

RXA0146060-UN-23OCT14

Mechanical Adjust Seat

A - Ride Comfort (Weight) Adjustment Knob

B - Seat Height Adjustment Knob

C - Foreward and Backward Adjustment Lever

Ride Comfort (Weight) Adjustment: Adjust seat suspension to firm or soft ride. Turn knob (A);

• Clockwise for heavier setting and firmer ride. seat or counterclockwise to lower seat.

• Counterclockwise for lighter setting and softer ride.

Seat Height: Turn seat height adjustment knob (B);

• Clockwise to raise seat.

• Counterclockwise to lower seat.

Forward and Backward Adjustment: Lift lever (C) and slide seat forward or backward to desired position. Mark sure all controls are within easy reach.
