Adjusting Steering Wheel Tilt and Height

RXA0146063-UN-23OCT14

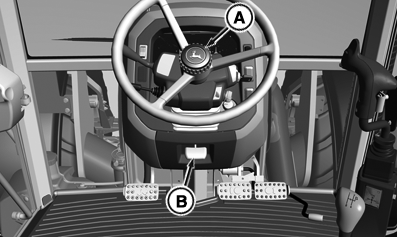

Steering Wheel Tilt Lever -- Cab

RXA0146064-UN-23OCT14

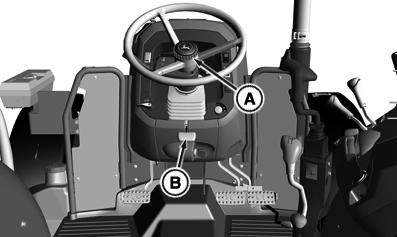

Steering Wheel Tilt Lever -- OOS

A - Steering Wheel Telescope Release Ring

B - Steering Wheel Tilt Lever

Loosen steering wheel telescope release ring (A) and adjust steering wheel to desired height. Tighten ring to lock into position.

Lift lever (B) and move steering column to desired angle. Release lever to lock into position.
