Operate Mechanical Rate-of-Drop

CAUTION: To avoid injury from hitch movement, only adjust rate-of-drop from operator station.

RXA0146137-UN-30OCT14

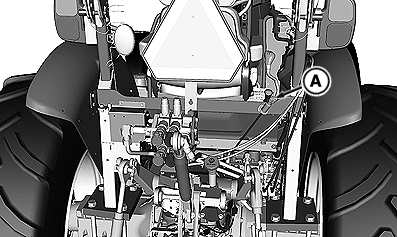

Cab

RXA0146136-UN-30OCT14

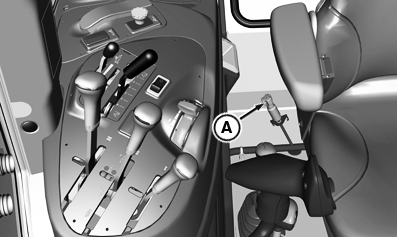

Open Operator Station (OOS)

A - Rate-of-Drop Control Knob

IMPORTANT: Fully lowering implement should take at least 2 seconds. Rate of drop is directly related to implement weight; therefore select a rate slow enough to prevent damage.

Turn rate-of-drop control knob (A), located behind right rear of seat:

• To slow rockshaft drop, turn CLOCKWISE.
• To increase rate-of-drop, turn COUNTERCLOCKWISE.
