Attach Implements to 3-Point Hitch

CAUTION: Hitch movement can cause injury or death.

IMPORTANT: Ensure center link and lift link adjustments DO NOT cause implement contact with fenders.

NOTE: Engine must be running for 3-point hitch control to work.

Before attaching or detaching implement, place draft control (B) into lowest setting. (See Adjust Draft Controls in Section 60.)

Use position control lever (A) to raise or lower implement.

Be sure drawbar will not interfere. If necessary, move drawbar to fully retracted position or remove it. Check for any other potential interference.

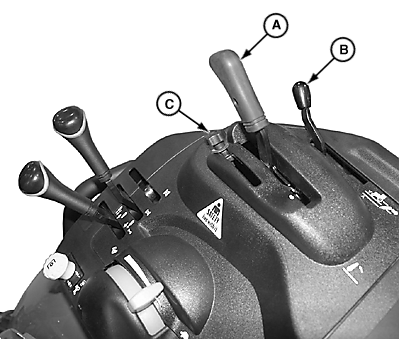

LV14573-UN-05AUG11

Mechanical Hitch (OOS)

A - Position Control Lever

B - Draft Sensing Lever-Knob

C - Hitch Control Lever Stop

CAUTION: To prevent unexpected movement of rear hitch, place draft sensing control in lowest position before attaching implement to hitch.

Telescopic Draft Links

1.

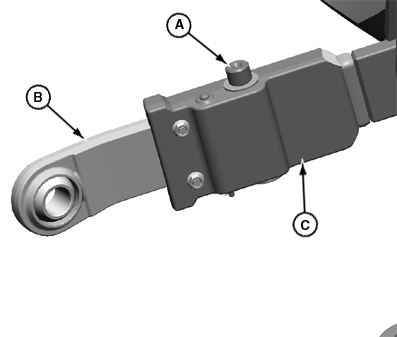

   LV22035-UN-09JUN14

   Standard Draft Link


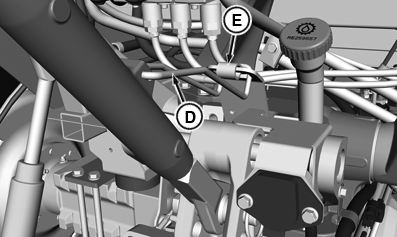

   RXA0146140-UN-30OCT14

   Center Link Locking Clip

   A - Button or Lock Pin

   B - Draft Link End

   C - Draft Arm

   D - Center Link Locking Clip

   E - Tab

   Move button or lock pin (A) toward center of tractor and pull out draft link end (B). Slip draft link end over implement hitch pin. Retain with quick-lock pin. Repeat on other side.

---




2. Raise or lower draft arms (C) to align draft link ends (B) with implement, slowly back up tractor to lock ends in place.

3. Back tractor up to implement so hitch points align. Place transmission in PARK and stop engine.

4. Slip draft link ends (B) over implement hitch pins and retain with quick-lock pins.

5. Push tab (E) back and lift center link locking clip (D) to release center link from transport hook.

6. Attach center link to implement top mast.

7. Adjust center link and lift links as necessary. See ”Level Hitch” in this section.

8. CAUTION: To avoid bodily injury or machine damage whenever an implement, implement quick coupler, or other attachment is connected to the tractor 3-point hitch, check full range of operation for interference, binding or PTO separation.


   LV14194-UN-27APR11

   Cab


   RXA0146138-UN-30OCT14

   OOS

   A - Position Control Stop Knob

   B - Rockshaft Draft Control Lever

   C - Rockshaft Position Control Lever

   Start engine. Using rockshaft position control lever (C), slowly raise and lower implement and check for interference.

---
