Mid-Mount SCV Multi-function Lever and Coupler Identification—If Equipped

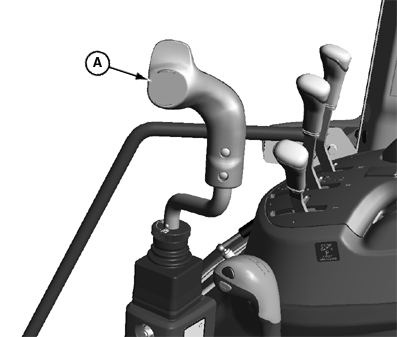

Multi-function lever (A) controls oil flow to corresponding selective control valve (SCV) couplers at the right side of tractor.

LV22039-UN-09JUN14

Multi-function lever

A - Multi-function lever

Coupler Identification

Top couplers retract; bottom couplers extend.

RXA0146142-UN-30OCT14

Mid-Mount SCV Couplers

A - Boom Cylinder—Retract

B - Boom Cylinder—Extend

C - Bucket Cylinder— Retract

D - Bucket Cylinder—Extend

E - Third-Function Cylinder—Retract

F - Third-Function Cylinder—Extend
