Adjust Flow Control—Rear SCV and Mid SCV—If Equipped

CAUTION: Excessive operating speed may cause injury or machine damage.

Decrease flow rate if hydraulic oil overheats, remote cylinder moves too quickly, or if hydraulic motor turns too fast.

LV22108
LV22108-UN-17JUN14

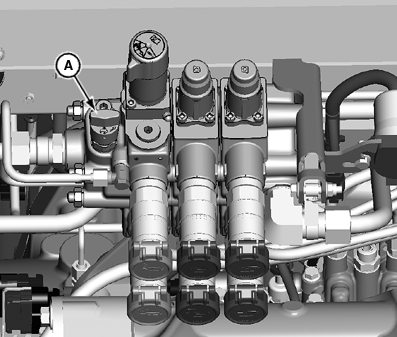

Rear SCV

RXA0146167
RXA0146167-UN-03NOV14

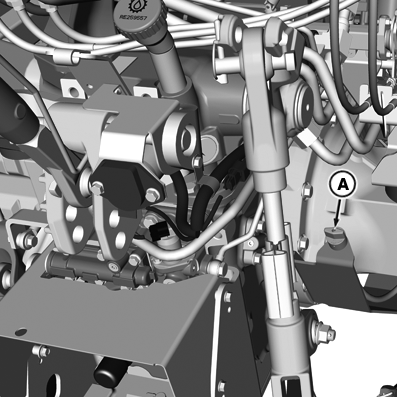

Mid SCV

A - Flow Control Adjustment

Flow control adjustment (A) only affects section I of rear selective control valve (SCV) and the electrohydraulic (grapple) section of the three-function mid SCV. Other valve sections are not affected by this adjustment.

NOTE: Maximum flow possible on electrohydraulic section of three-function mid SCV is 45 L/min (11.9 gal/min).

To INCREASE flow, rotate Left (COUNTERCLOCKWISE).

To DECREASE flow, rotate Right (CLOCKWISE).

NOTE: Rear SCV: If detent kicks out before end of cycle, use SCV I and adjust flow control.
