Operate PowrReverser Plus Transmission

LV9564
LV9564-UN-13AUG04

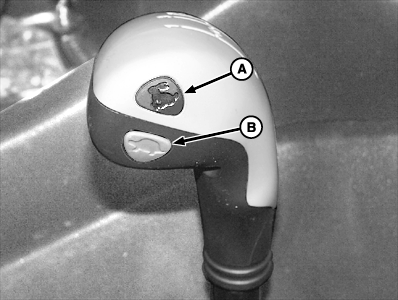

High/Low Switches

LV22000
LV22000-UN-19AUG14

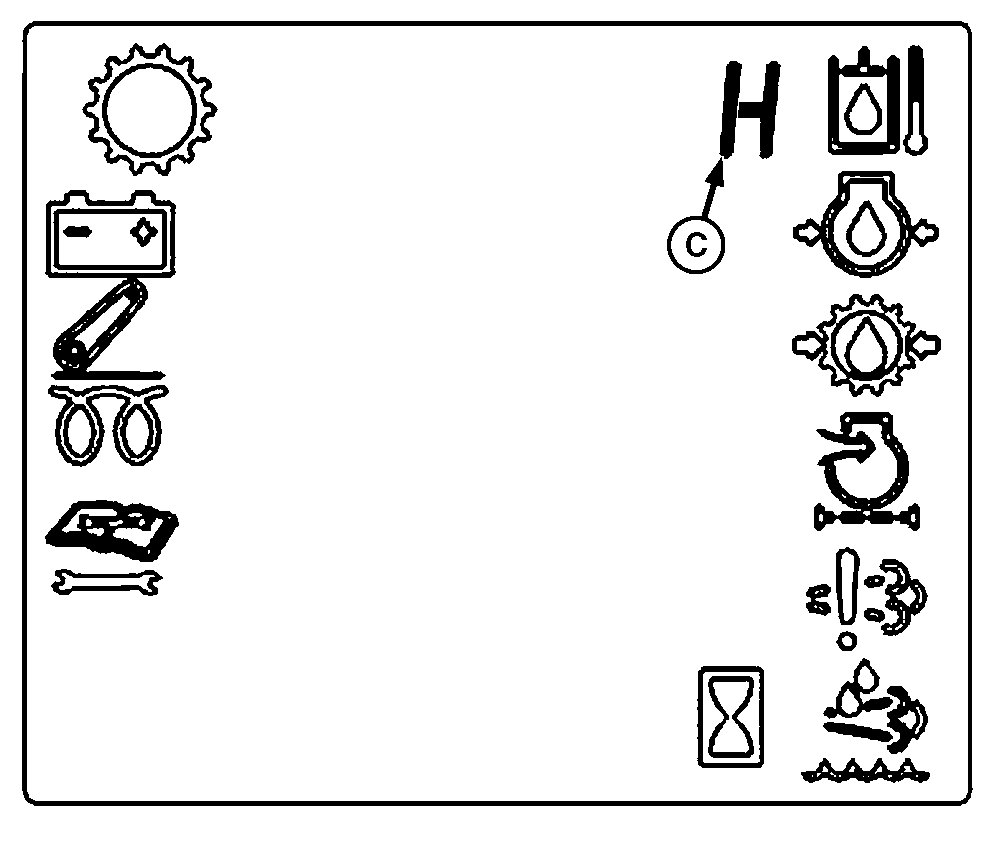

High Speed Indicator

LV22001
LV22001-UN-12SEP14

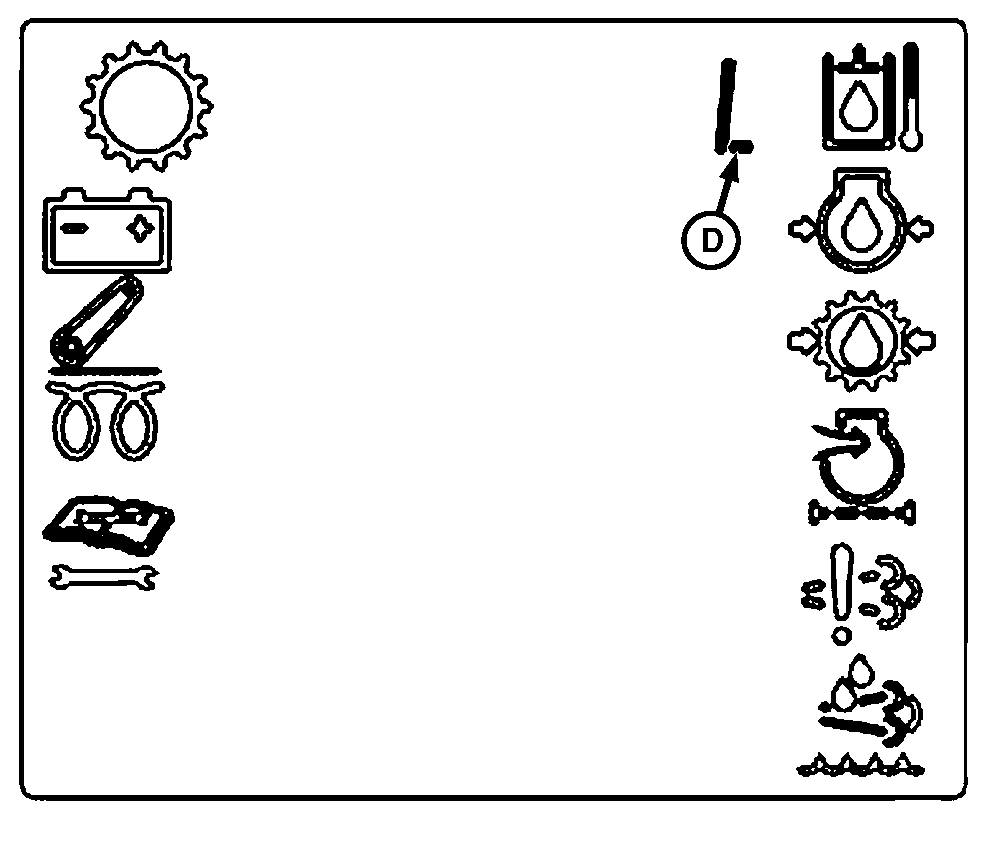

Low Speed Indicator

A - High Speed

B - Low Speed

C - High Speed Indicator

D - Low Speed Indicator

PowrReverser Plus™ transmission is available with push-button high speed (A) and low speed (B) split-shift feature. Each range and gear combination is split for more exact speed control.

High speed and low speed split-shift feature doubles forward speeds to 24 forward and 12 reverse.

Use the high speed and low speed switches to up-shift and down-shift within the selected range and gear.

“H” (C) appears when high speed is selected and “L” (D) appears when low speed is selected.

PowrReverser Plus is a trademark of Deere & Company

GS25068,000143E-19-20141104
