Position Center Link
RXA0146143-UN-30OCT14

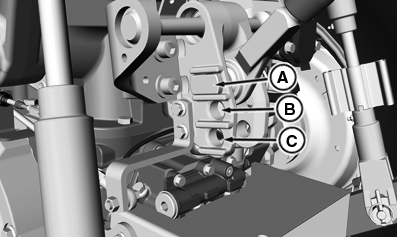

Positioning Center Link
A - Upper Hole
B - Middle Hole
C - Lower Hole
The center link attaching bracket has holes which allow four different positions for attaching the center link.NOTE: Center link attaching bracket can be inverted to provide hole position (D).
If the following conditions occur, move center link to indicated holes to correct.
|
Condition |
Use Holes |
|---|---|
|
Rear of implement rises too much when lifted. 1 |
A or B |
|
Rear of implement drags the ground. |
B or C |
NOTE: Implements with Category I mast height 457 mm (18 in.) normally use attaching holes (C and D), and implements with Category II mast height 483 mm (19 in.) use holes (A and B).
|
1 The implement weight which can be lifted is
reduced slightly with center link attachment in lower holes.
|
