Filling Fuel Tank

CAUTION:

TS202-UN-23AUG88

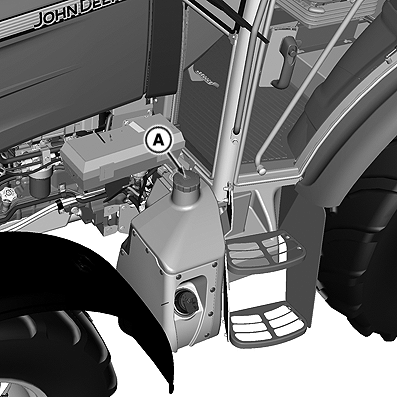

RXA0146176-UN-04NOV14

Cab Fuel Tank

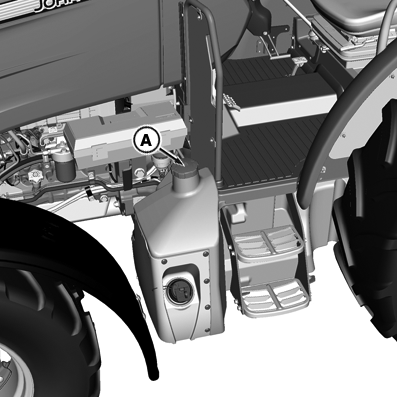

RXA0146177-UN-04NOV14

OOS Fuel Tank

A - Fuel Tank

Always stop engine before refueling machine. Fill fuel tank outdoors.

Prevent fires by keeping machine clean of accumulated trash, grease, and debris. Always clean up spilled fuel.

Fill fuel tank at end of each day of operation to prevent condensation in tank as moist air cools.

5085E and 5100E	Cab	114 L (30 gal.)
5085E and 5100E	Open Operator's Station	114 L (30 gal.)

NOTE: To reduce fuel gelling and control wax separation during cold weather, John Deere Fuel Flow Improver or equivalent may be added to fuel or bulk storage tank.
