Front Loader Installation - Front Loader Brackets

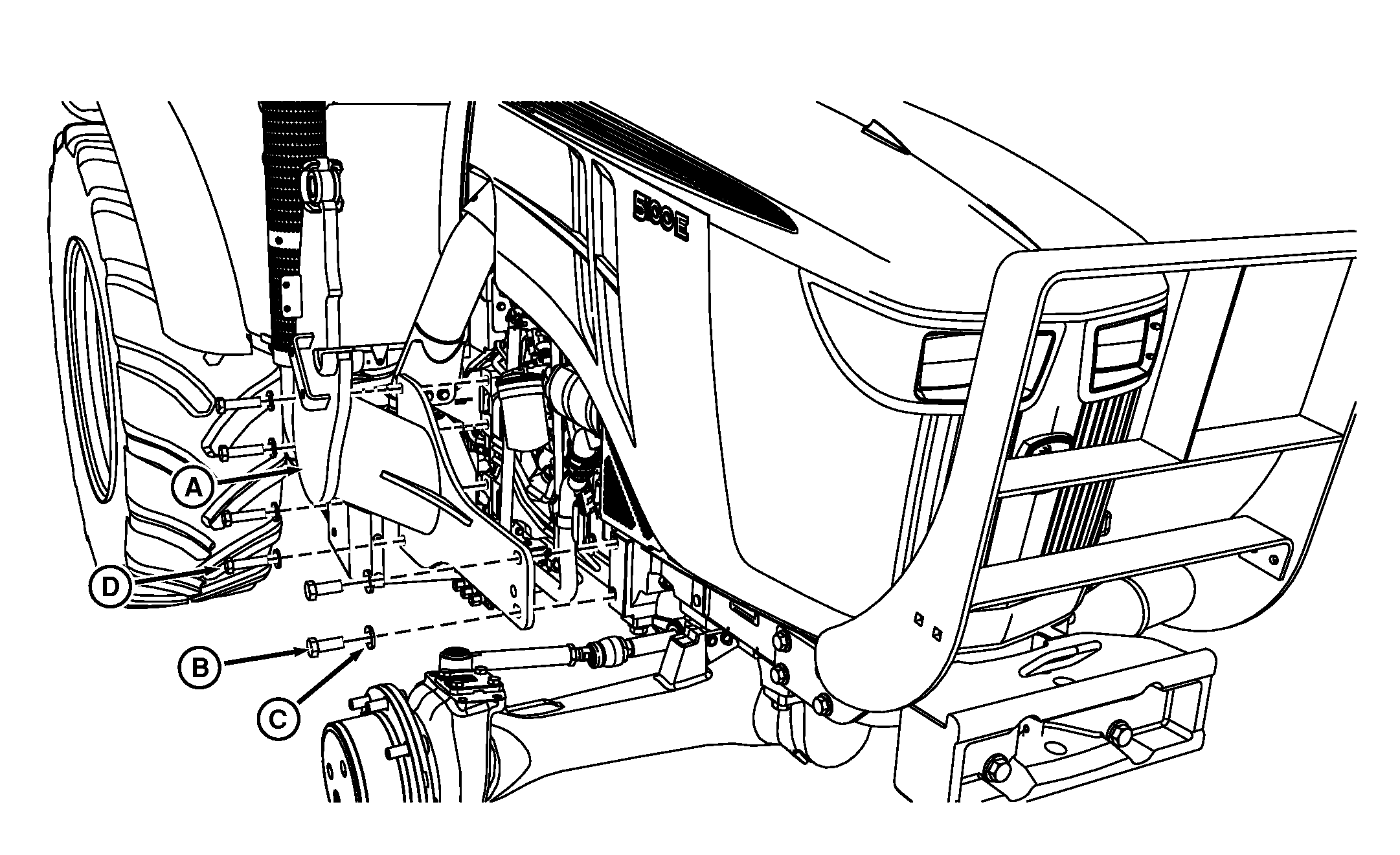

RXA0146175-UN-06NOV14

A - Front Loader Bracket (Right-Hand Shown)

B - Hex Head Cap Screws M20 x 50mm (4 used)

C - Flat Washers (12 used)

D - Hex Head Cap Screws M20 x 80mm (8 used)

Hardware for John Deere front loader brackets
Item	Description	Width across flats	Torque	Standard	Thread	Length	Identification/Grade
B	Hex Head Cap Screw	30 mm	490 N·m (361 lb.-ft.)	ISO 4014	M20 x 2.5	50mm	10.9
C	Washer	—	—	JDS 130	—	—	300HV
D	Hex Head Cap Screw	30 mm	490 N·m (361 lb.-ft.)	ISO 4014	M20 x 2.5	80mm	10.9

Using a suitable hoist, position the front loader brackets on the main frame of the tractor and tighten the screws to the specified torque. Check the torque regularly; see Section 100, Maintenance and Service Intervals.

IMPORTANT: A front loader checked and approved by John Deere is available for purchase.

When installing John Deere front-loader brackets, use appropriate hardware only, as shown in the illustration above.

Comply also with Operator’s Manual and Installation Instructions of front-loader.
