Clean Grille Screens, Radiator, Oil Cooler, Air Conditioning Screen (If Equipped), and Air Conditioning Condenser (Cab)

1.

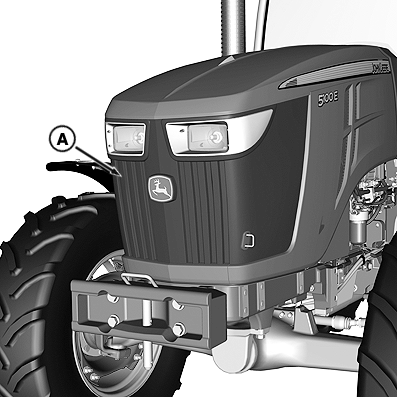

   RXA0146180-UN-11NOV14

   Grille

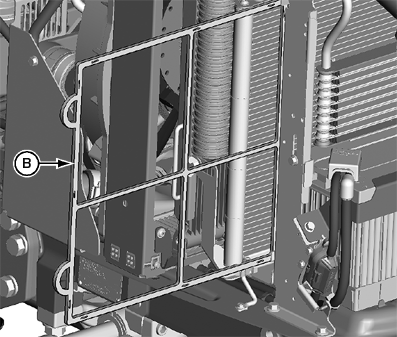

   LV22185-UN-20JUN14

   Air Conditioning Condenser Screen

   A - Grille

   B - Air Conditioning Condenser Screen (Cab)

   When trash builds up on front grille (A), stop engine and brush clean.

---




2. Raise hood. Remove and clean air conditioning condenser screen (B) using a brush or compressed air. Air conditioning condenser screen is removed by sliding out right-hand side of engine compartment.

3. CAUTION: Reduce compressed air to less than 210 kPa (2 bar) (30 psi) when using for cleaning purposes. Clear area of bystanders, guard against flying chips, and wear personal protection equipment including eye protection.


   LV22186-UN-20JUN14

   Air Conditioning Condenser (if equipped)


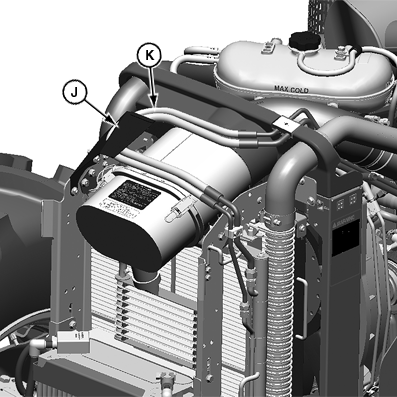

   LV23402-UN-13OCT14

   AC Hoses

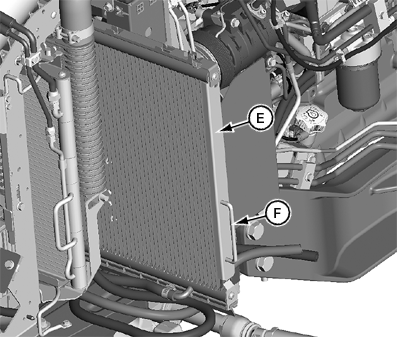

   LV22187-UN-20JUN14

   Oil Cooler

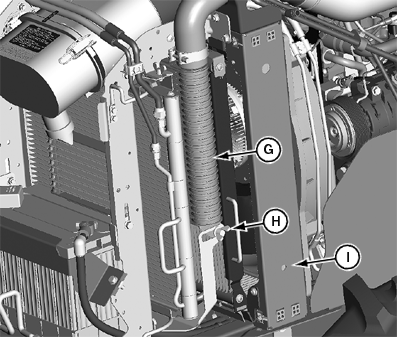

   LV22188-UN-20JUN14

   Charge Air Cooler and Radiator

   C - Air Conditioning Condenser (if equipped) (Cab)

   D - Wing Nut (Air Conditioning Condenser)

   E - Oil Cooler

   F - Handle (oil cooler)

   G - Charge Air Cooler

   H - Wing Nut (charge air cooler)

   I - Radiator

   J - Hose Guard

   K - Air Conditioning Hose

   Inspect air conditioning condenser (C) (cab), oil cooler (E), charge air cooler (G), and radiator (I) for debris. Clean using a brush or compressed air.

   If a more thorough cleaning is required, air conditioning condenser and oil cooler slide out of position for easier access.

---




4. Air Conditioning Condenser: Loosen wing nut (D) and slide air conditioning condenser from left-hand side of engine compartment. Clean as needed.

   NOTE: To prevent unnecessary wear to air conditioning hoses, ensure that they are under the hose guard after sliding air conditioning condenser back into its operating position.

5. Slide air conditioning condenser back into place. Ensure that air conditioning hoses (K) are secured under hose guard (J).

6. NOTE: Oil cooler slides out, approximately, half way from either side of the tractor.

   Oil Cooler: Pull firmly on handle (F) to slide oil cooler from side of engine compartment.

7. Loosen wing nut (H) to pivot charge air cooler towards front of tractor. With oil cooler slid out, radiator and charge air cooler are accessible for cleaning.

8. Straighten any bent fins.

9. Push air conditioning condenser, oil cooler, and charge air cooler back into position.

10. To secure, tighten wing nuts. Ensure that oil cooler snaps securely into mounting clips.
