Replace Tail Light and/or Warning Light Bulb—Open Operator's Station

NOTE: Bulb replacement is the same for tail light and warning light. Left side shown.

1.
   LV22993-UN-09SEP14


   LV22998-UN-09SEP14


   LV22999-UN-09SEP14

   A - Upper Bolt

   B - Lower Bolt

   C - Offset Bracket

   D - Screws (4 used)

   E - Wiring Channel

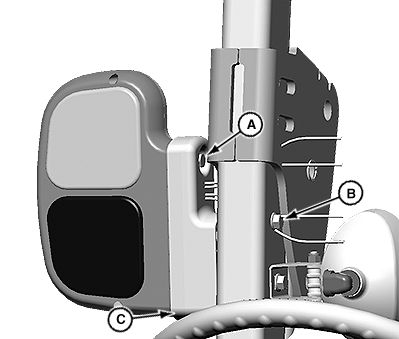

   Remove upper bolt (A) and lower bolt (B) securing tail light housing to offset bracket (C).

---

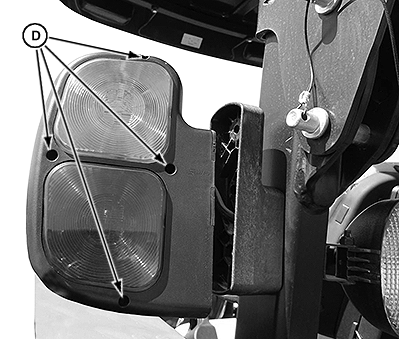

2. To access light bulbs and sockets, remove screws (D).
3. Push and twist bulb to remove from socket.
4. Install new bulb, lens housing, and screws.

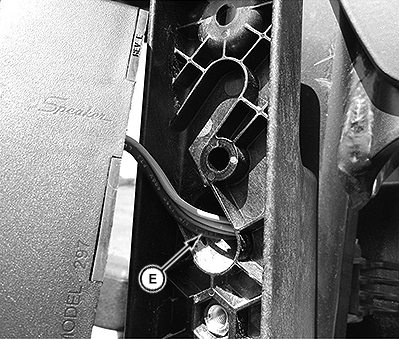

5. Install tail light to bracket ensuring that wires are routed in wiring channel (E).
6. Install upper and lower bolts.
