Door and Windows

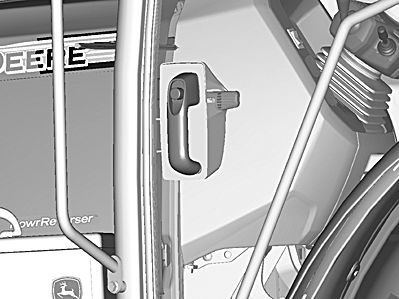

LV15549-UN-14MAR12

Cab Door - Left Side Shown

In an emergency situation, rear window provides a large exit path if cab doors are blocked.

LV12459-UN-14MAR06

Side window

LV12460-UN-12APR05

Rear window

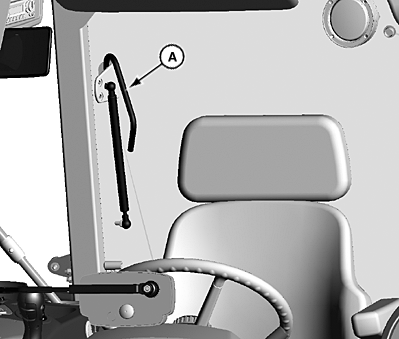

LV18017-UN-11JUN13

Grab Handle

A - Grab Handle

Rear and side windows open by releasing latch and pushing window out.

Rear window is mounted on a two position hinge and comes equipped with a grab handle (A).
