Before Starting the Engine

CAUTION:

TS220
TS220-UN-15APR13

Prevent asphyxiation by providing adequate ventilation. If operating indoors, use an exhaust pipe extension to remove the exhaust fumes or open doors and windows to thoroughly ventilate the area.

  1. Check fuel gauge.

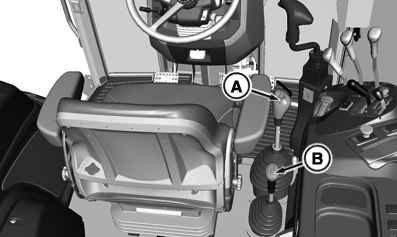

  2. RXA0146069
    RXA0146069-UN-27OCT14

    Gear and Range Shifter Levers (Cab shown; OOS similar)

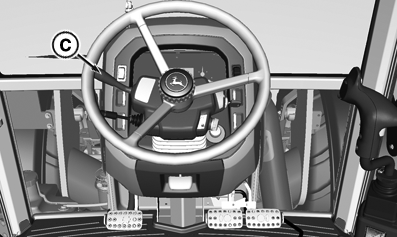

    RXA0146070
    RXA0146070-UN-27OCT14

    EH Directional Reverser Lever (Cab shown; OOS similar)

    A - Gear Shift Lever

    B - Range Shift Lever

    C - EH Directional Reverser Lever

    Transmission Controls: Put gearshift lever (A) in NEUTRAL or PARK and range shift lever (B) in NEUTRAL.

    Put electrohydraulic (EH) directional reverser lever (C) in NEUTRAL.

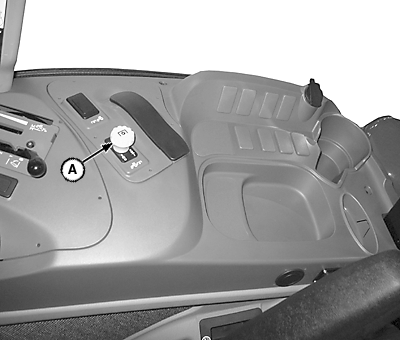

  3. LV14213
    LV14213-UN-02MAY11

    EH PTO Knob (Cab)

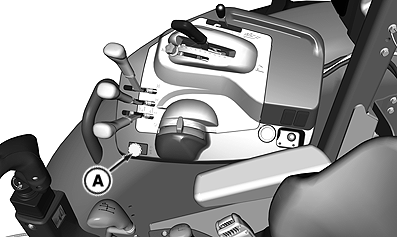

    RXA0146071
    RXA0146071-UN-27OCT14

    EH PTO Knob (OOS)

    A - EH PTO Knob

    Push PTO Switch knob (A) down to disengage.

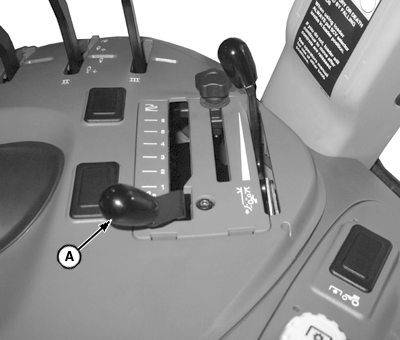

  4. LV14179
    LV14179-UN-03MAY11

    Hitch Control Lever (Cab)

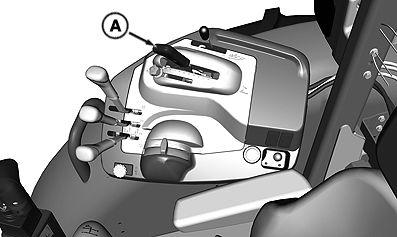

    RXA0146075
    RXA0146075-UN-27OCT14

    Hitch Control Lever (OOS)

    A - Hitch Control Lever

    Push hitch control lever (A) forward to lower equipment to the ground.


  5. Turn key to RUN position and check to see if all indicators light. (If any indicator does not light, see your John Deere dealer.)

GS25068,000145C-19-20141110
