Select a Gear

LV22006-UN-19AUG14

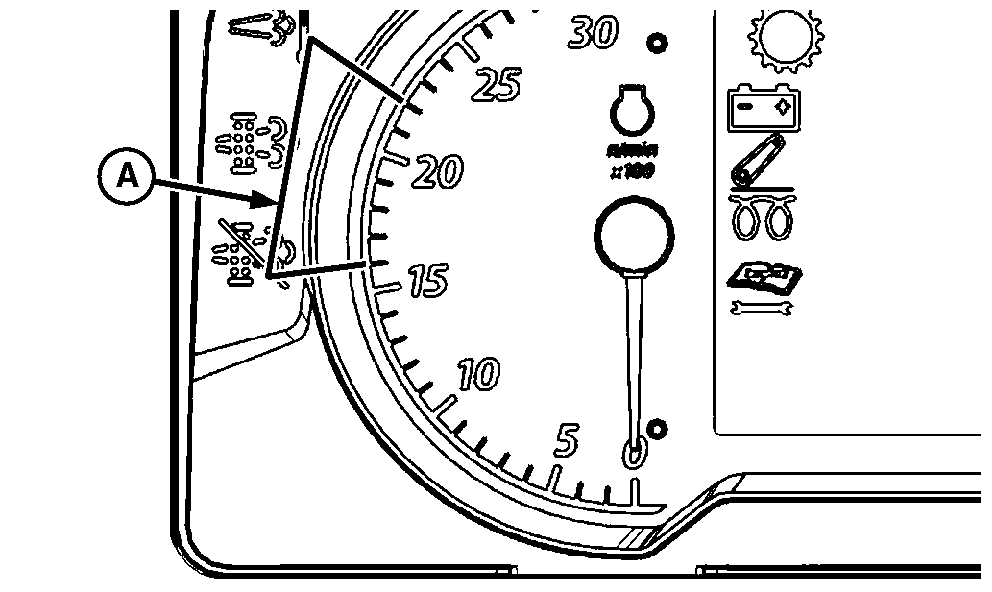

A - 1600—2500 Rated Engine RPM

IMPORTANT: If equipped with ballast, select one gear lower than normal to extend drive train life and avoid excessive soil compaction and rolling resistance.

The tractor may be operated in any gear with engine speeds between 1600—2500 engine rpm (A). Engine can be operated under full load conditions when engine speed is inside range (A). For light load operation, use a higher gear and lower engine speed. This saves fuel and reduces wear.
