Fuse and Relay Size and Function

Open Operator Station

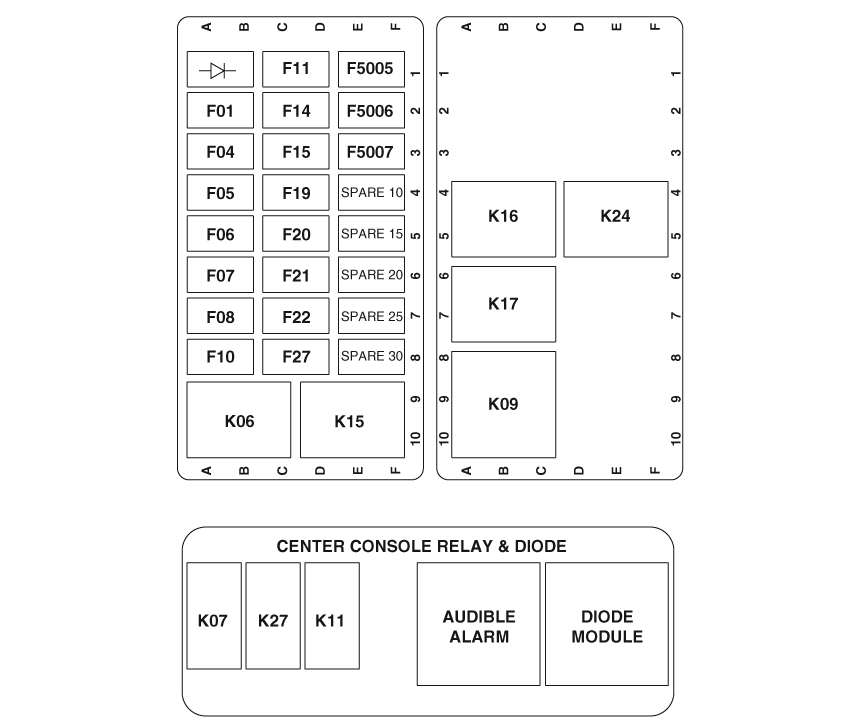

NOTE: OOS with PowrReverser™ Transmission or PowrReverser™ Plus Transmission—Diode Module, relay K07, relay K11, and relay K27, located in center console.

RXA0146330-UN-11NOV14

OOS with PowrReverser Transmission or PowrReverser Plus Transmission

F01 - Key Switch Fuse (30A)

F04 - Light Switch Fuse (20A)

F05 - Headlight Fuse (15A)

F06 - Junction Block Unswitched Power Fuse (30A)

F07 - Instrument Cluster Fuse (20A)

F08 - Instrument Cluster Fuse (20A)

F10 - Implement Power Fuse (20A)

F11 - Junction Block Switched Power Fuse (30A)

F14 - Front Work Light Fuse (30A)

F15 - Tail Lamp Light Fuse (15A)

F18 - ELX Fuse (10A)

F19 - Transmission Controller Fuse (10A)

F20 - CCU Sensor Fuse (10A)

F21 - Transmission Controller Fuse (10A)

F22 - Horn Fuse (10A)

F27 - Backup Alarm Fuse (5A)

F5005 - ECU Power Fuse (25A)

F5006 - ECU Power Fuse (25A)

F5007 - ECU Power Fuse (25A)

K06 - Implement Power Relay

K07 - Accessory Controller Relay

K09 - Front Work Lamp Relay

K11 - Neutral Relay

K15 - EH System Power

K16 - Not Neutral Relay

K17 - Transmission Enable Relay

K24 - Forward High Relay

K25 - Mid-Mount SCV Retract Relay

K26 - Mid-Mount SCV Extend Relay

K27 - Headlight Relay

Cab

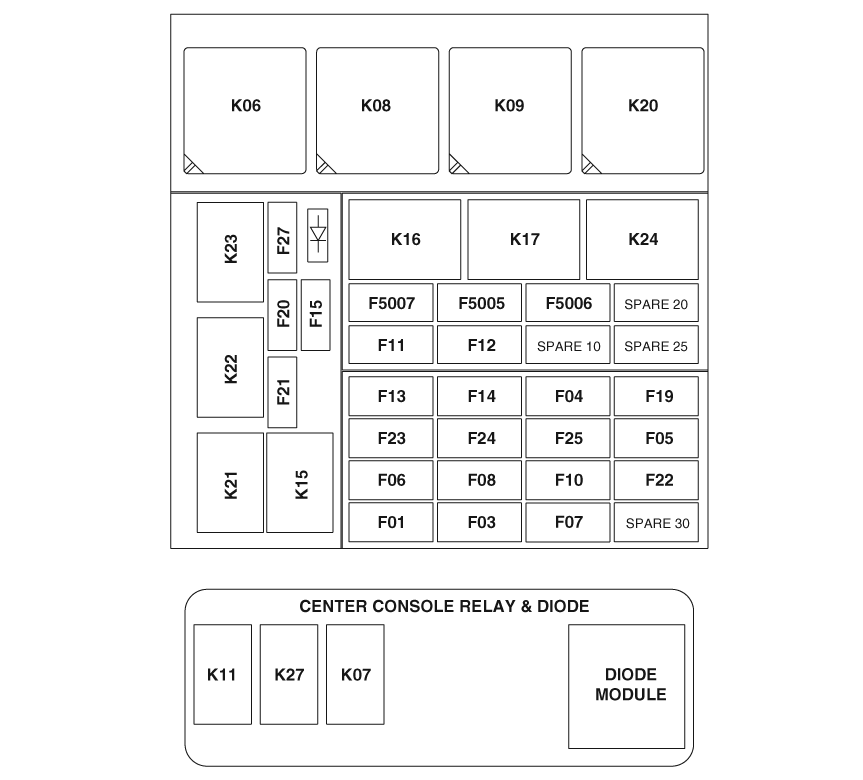

NOTE: Cab with PowrReverser™ Transmission or PowrReverser™ Plus Transmission—Diode Module, relay K07, relay K11, and relay K27 are located in center console.

RXA0146184-UN-11NOV14

Cab with PowrReverser or PowrReverser Plus Transmission

F01 - Key Switch Fuse (30A)

F03 - Dome Light Fuse (10A)

F04 - Light Switch Fuse (20A)

F05 - Headlight Fuse (15A)

F06 - Junction Block Unswitched Power Fuse (30A)

F07 - Instrument Cluster Fuse (20A)

F08 - Instrument Cluster Fuse (20A)

F10 - Implement Power Fuse (30A)

F11 - Junction Block Switched Power Fuse (30A)

F12 - Radio Fuse (10A)

F13 - Rear Work Lamp Fuse (30A)

F14 - Front Work Lamp Fuse (30A)

F15 - Tail Lamp Fuse (15A)

F18 - ELX Fuse (10A)

F19 - Transmission Controller Fuse (10A)

F20 - CCU Sensor Fuse (10A)

F21 - Transmission Controller Fuse (10A)

F23 - HVAC Relay-Right Blower Relay Fuse (30A)

F24 - Wiper Relay Fuse (20A)

F25 - Left Blower Relay Fuse (20A)

F27 - Backup Alarm Fuse (5A)

F32 - Subwoofer Fuse (10A)

F35 - Backup Alarm and Air Seat Fuse (30A)

F36 - Monitor and Position Receiver Fuse (10A)

F37 - Monitor and Position Receiver Fuse (10A)

F38 - ATU Fuse (10A)

F5005 - ECU Power Fuse (25A)

F5006 - ECU Power Fuse (25A)

F5007 - ECU Power Fuse (25A)

K06 - Implement Power Relay

K07 - Accessory Power Relay

K08 - Rear Work Lamp Relay

K09 - Front Work Lamp Relay

K10 - Accessory Power Relay 2

K11 - Neutral Relay

K15 - EH System Power

K16 - Not Neutral Relay

K17 - Transmission Enable Relay

K20 - HVAC Relay

K21 - Wiper Relay

K22 - Left Blower Relay

K23 - Right Blower Relay

K24 - Forward High Relay

K25 - Mid-Mount SCV Retract Relay

K26 - Mid-Mount SCV Extend Relay

K27 - Headlight Relay
