Drain Water and Sediment from Fuel Tank and Fuel Filter

1. NOTE: Place a small container under drain fitting to catch draining fuel. Dispose of waste properly.

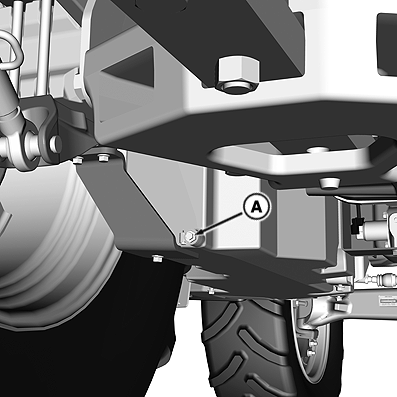

   RXA0146331-UN-12NOV14

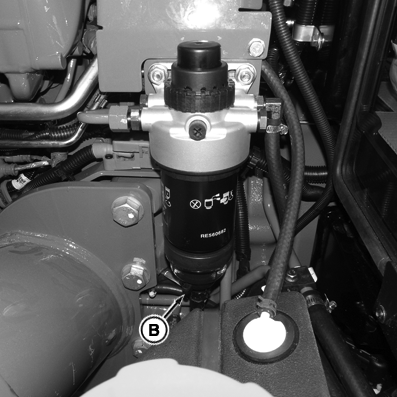

   RXA0146332-UN-25NOV14

   A - Fuel Tank Drain Plug

   B - Fuel Filter/Water Separator Drain

   Open fuel tank drain plug (A) to bleed accumulated moisture and sediment from the fuel tank. Tighten plug when clear fuel runs from fitting.

---




2. Open fuel filter/water separator drain (B) to bleed accumulated moisture and sediment from filter. Tighten drain when clear fuel runs from drain.
