Lubricate MFWD Axle Trunnion

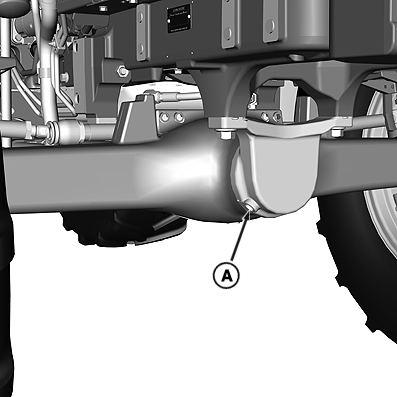

RXA0146336-UN-12NOV14

Front Side Trunnion of MFWD Axle

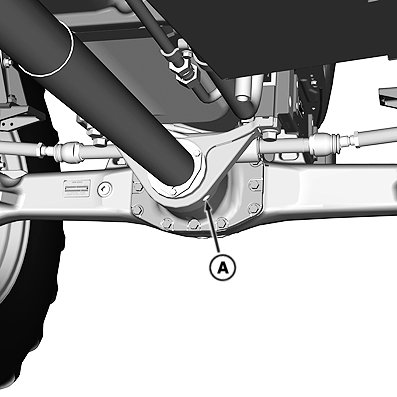

RXA0146337-UN-12NOV14

Back Side Trunnion of MFWD Axle

A - Trunnion grease points

Apply several shots of multipurpose grease (see Grease, in Section 75) to trunnion.

NOTE: Daily service is necessary when operating in extremely wet and muddy conditions.

Greasing too frequently can cause seal fatigue.
