Replacing Transmission-Hydraulic Filter

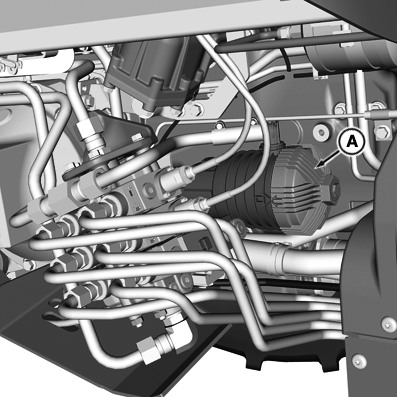

RXA0146168-UN-03NOV14

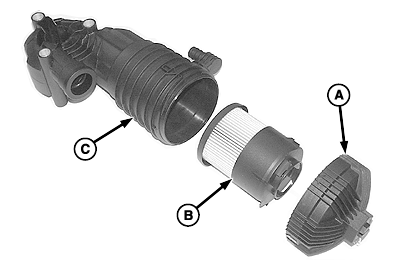

LV9610-UN-10AUG04

A - Cover

B - Filter Element

C - Housing

SERVICE INTERVAL
	INITIAL — 100 HOURS
	REGULAR — 600 HOURS

1. Remove cover (A) and filter.

2. Separate filter element (B) from cover. Discard filter element.

3. Clean cover, threads on filter housing and seal inside cover.

4. Assemble filter and cover. (Filter should “snap” into cover.)

5. Install cover and filter assembly.

6. Run engine several seconds and recheck transmission-hydraulic oil level.

7. Add transmission-hydraulic oil as required. (See Transmission and Hydraulic Oil in Fuel, Lubricants, and Coolant section.)
