Inspect Hose Clamps on Air Intake System and Engine Cooling System

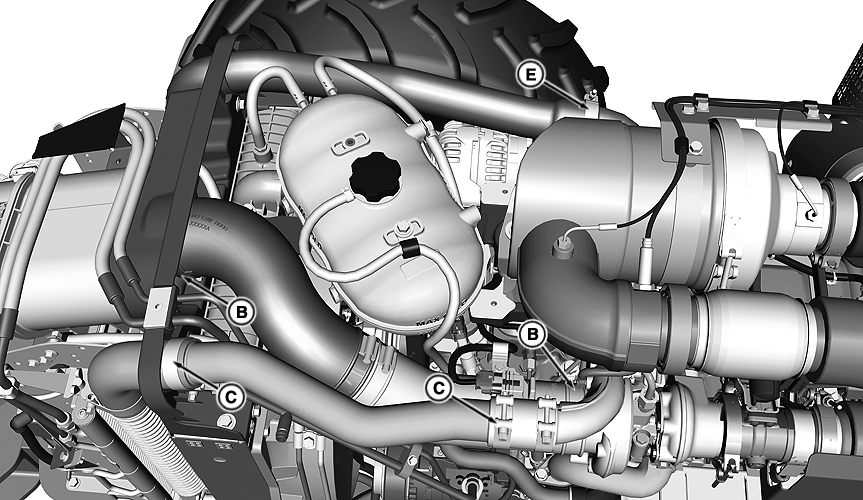

RXA0146342-UN-12NOV14

Top View

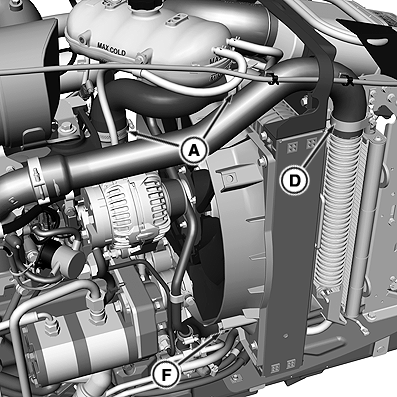

RXA0146341-UN-12NOV14

Left-Side View

A - Engine to Radiator Cooling System (Radiator Supply) Hose Clamps (2 used)

B - Air Cleaner to Turbocharger Hose Clamps (2 used)

C - Turbocharger to Charge Air Cooler Hose Clamps (2 used)

D - Charge Air Cooler Outlet Hose Clamp

E - Engine Intake Hose Clamp

F - Radiator to Engine Cooling System (Water Pump Supply) Hose Clamp

Inspect air intake system and engine cooling system for leaks.

Inspect hose clamps of air intake system and engine cooling system for loose hose clamps and tighten if found.
