Tractor Controls—Cab

Right-Hand Console

NOTE: The rockshaft rate-of-drop knob (N) is located behind driver’s seat on lower right-hand side.

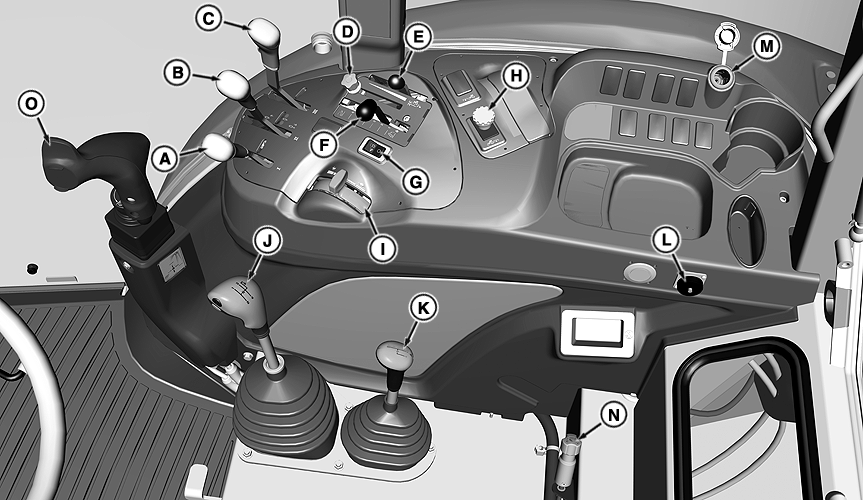

RXA0146001-UN-22OCT14

A - SCV Lever I

B - SCV Lever II

C - SCV Lever III

D - Position Control Stop Knob

E - Rockshaft Draft Control Lever

F - Rockshaft Position Control Lever

G - MFWD Switch

H - PTO Switch

I - Hand Throttle

J - Gear Shift Lever

K - Range Shift Lever

L - Convenience Outlet

M - 12 Volt Accessory Outlet

N - Rockshaft Rate-of-Drop Knob

O - Multi-function Lever

Left Side Controls

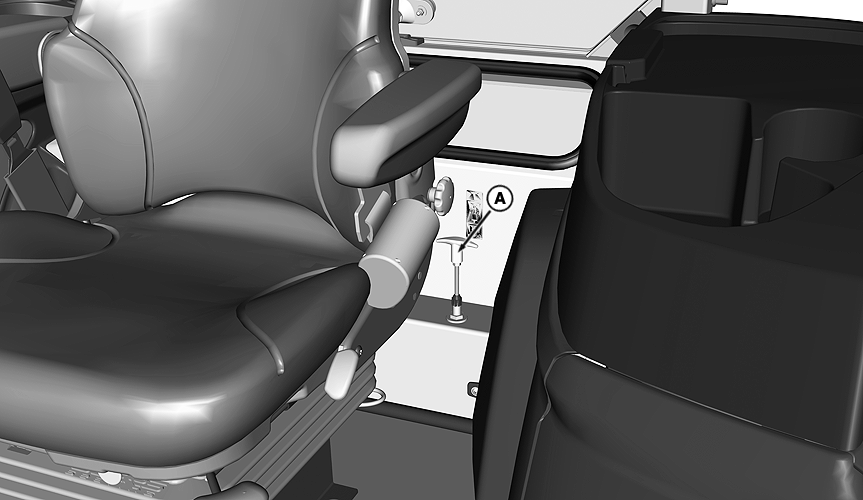

RXA0146002-UN-22OCT14

A - 540/540E PTO Shift Lever
